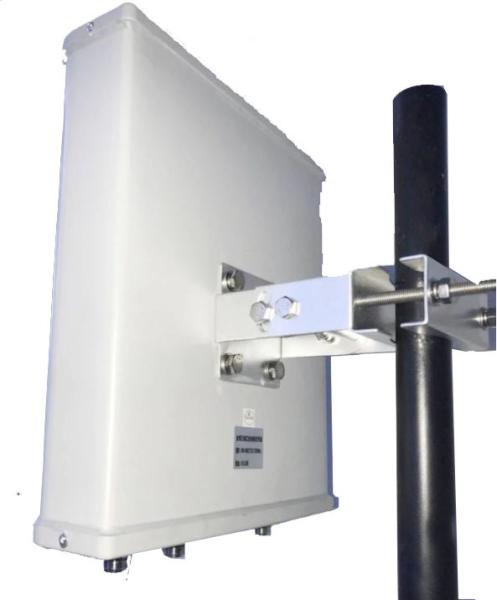

Extent Stadium Outdoor Directional Panel Antenna Narrow Beam 698-960MHz 1695-2700 MHz
Extent Stadium Outdoor Directional Panel Antenna Narrow Beam 698-960MHz 1695-2700 MHz
Specifications
Brand Name :
ZD
Model Number :
ZD-MDA-727-8NF
Certification :
CE
Place of Origin :
china
MOQ :
NEGOTIABLE
Price :
NEGOTIABLE
Frequency (MHz) :
698-2700
Gain (dBi) :
2×8
Power (W) :
50
PIM（2X43dBm） :
≤-140dBc
VSWR :
≤1.9
Impendence (Ω) :
50
Description

extent stadium antenna Narrow Beam Directional Antenna

[698-960MHz, 1695-2700 MHz]

Description:
• Single-sector MIMO antenna for high
capacity venues.
• 60o/60o dual-polarized beam width
covering 698-960MHz and 1695-2700MHz

Electrical Data ZD-MDA-727-8NF
Frequency (MHz) 698-806 / 806-960 / 1710-2170 / 2300-2700
Polarization ±45°
Gain (dBi) 2×8
Electrical tilt (°) 0
Horizontal beam width (°) 68 / 62 / 58 / 52
Vertical beam width (°) 68 / 62 / 58 / 52
Front to back Ratio (dB) ≥15
Impendence (Ω) 50
Cross Polar Ratio(dB) ≥15(±60°≥10)
Isolation (dB) ≥25
VSWR ≤1.9
Power (W) 50
PIM(2X43dBm) ≤-140dBc

Mechanical data
Connector type 2×N-F
Connector position bottom
Product Dimension(length×width×height:mm) 290×280×125
Packing dimenstion(mm) 400×375×160
Antenna Weight (kg) 3
Radome material UPVC
Radome color Grey
Mechanical tilt (°) 0~10
Operating temperature range(℃ ) -40~60
Max wind velocity(m/s) 60
Mounting hardware(mm) 35~75
