KC97 Silicone Cold Shrink Tube with Mastic FOR N-type connector, 1/2 jumper, Din head and 1/2 jumper connector.
KC97 Silicone Cold Shrink Tube with Mastic FOR N-type connector, 1/2 jumper, Din head and 1/2 jumper connector.
Specifications
Brand Name :
COTRAN
Model Number :
KC97
Place of Origin :
CHINA
Description

KC97 Silicone Cold Shrink Tube with Mastic FOR N-type connector, 1/2 jumper, Din head and 1/2 jumper connector.

Brief Description:

● It is widely used for waterproof seal in coaxial cables on telecommunication base stations, N-type connector, 1/2 jumper, Din head and 1/2 jumper connector.
●It can be used as a waterproof seal for cable television connector
● It can be used as a wate
Application

● It is widely used for waterproof seal in coaxial cables on telecommunication base stations, N-type connector, 1/2 jumper, Din head and 1/2 jumper connector.
●It can be used as a waterproof seal for cable television connector
● It can be used as a waterproof seal for connecting wires and cables
●Insulation seal for other types of connection.

KC97 Silicone Cold Shrink Tube with Mastic FOR N-type connector, 1/2 jumper, Din head and 1/2 jumper connector.

Dimensions
KC97S Φ28×110mm 50pcs/CTN
KC97SG Φ35×120mm 50pcs/CTN
KC97M Φ40×140mm 50pcs/CTN
KC97L Φ40×180mm 50pcs/CTN

Description

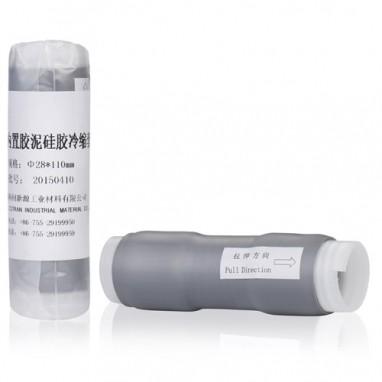

Cotran KC97 is an open-ended, water proofing mastic, cold shrink silicon rubber sleeve, which is factory pre-expanded and assembled onto a removable core. The core is removed when the tube is positioned for installation over an online connection or termination lug. The mastic at both ends provides excellent moisture-tight seals for termination and joints.

Properties
No. Performance Typical Value Test Method
1 Protection Grade IPX8 IEC 60529
2 Tensile Strength 10.3MPa ASTM D 421
3 Elongation at Breaking Point 990% ASTM D 421
4 Tear Strength 41.6N/mm ASTM D 624
5 Brittleness Temperature ＜ -40℃ ISO 812
6 Di-electric Strength 23KV/mm ASTM D 4325
7 Volume Resistivity 1.3×1017ΩNaN ASTM D 4325
8 Flame Retardant V-0 UL94
9 Heat Ageing Pass ASTM D 412
10 Ozone Ageing Pass ASTM D 1149
11 UV Ageing Pass ASTM G 154
