9166 Waterseal Mastic for antenna,cable,RRU ,Macro stations and special scenes
9166 Waterseal Mastic for antenna,cable,RRU ,Macro stations and special scenes
Specifications
Brand Name :
COTRAN
Model Number :
9166
Place of Origin :
CHINA
Description

9166 Waterseal Mastic for antenna,cable,RRU ,Macro stations and special scenes.

Application

● Antenna connector waterproof
● RRU connector waterproof
● Ground wire waterproof
● Applicable in Macro stations and special scenes.

9166 Waterseal Mastic for antenna,cable,RRU ,Macro stations and special scenes

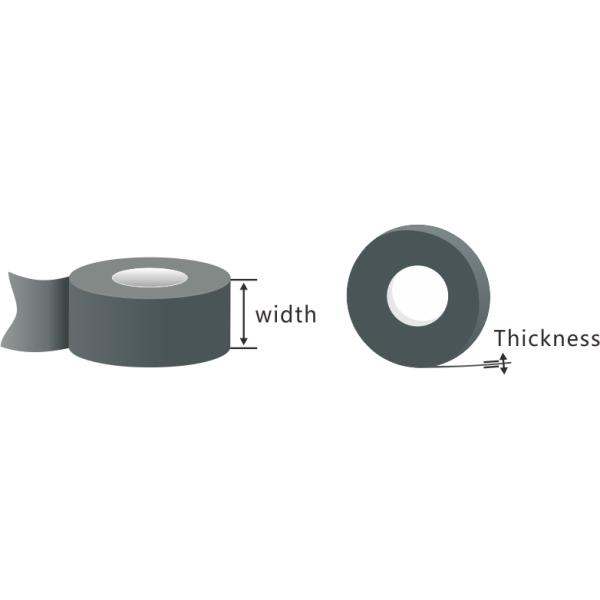

Dimension
9166 Waterseal Mastic for antenna,cable,RRU ,Macro stations and special scenes
W×T×L:63mm × 3.18mm × 0.6m
Description

9166 Water-seal mastic has an excellent adhesive property, waterproof moisture resistance, excellent high and low temperature resistance, as well as alkali, acid, salt, chemical corrosion etc. Even in cold climates, 9166 waterproof cement can remain active and can retain its strong waterproof sealing property. It can also retain the wire insulation tape and other outsourcing without any side effects. 9166 Water-seal mastic is highly conformable. It can be used for communication equipment base station, antenna, feeder and other indoor waterproof seal joint. It can also be used for moisture sealing, insulation in power cables and sinking wires through 600V. For optimal performance, use 9166 with COTRAN PVC tape.

Directions for use

1.Clean, dust and grease the cable connector regularly.
2. Remove the separator from tape. Make sure the tape has adhesive on it during connections.
3. Exceed 30mm-50mm joint fore and aft part when wrapped.
4. for optimal performance, use it with COTRAN PVC tape.

Properties
No. Performance Typical Value Test Method
1 Temperature Range -40℃ - 55℃
2 Operating Temperature 0℃ - 32℃ ASTM D 4325
3 Water Absorption < 0.05% ASTM D 570
4 Volume Resistance 1014ΩNaN ASTM D 4325
5 Cold Endurance -70℃ 168H ASTM G 154-2
6 Ozone Resistance Pass ASTM D 570
7 UV Resistance Pass ASTM D 4325
