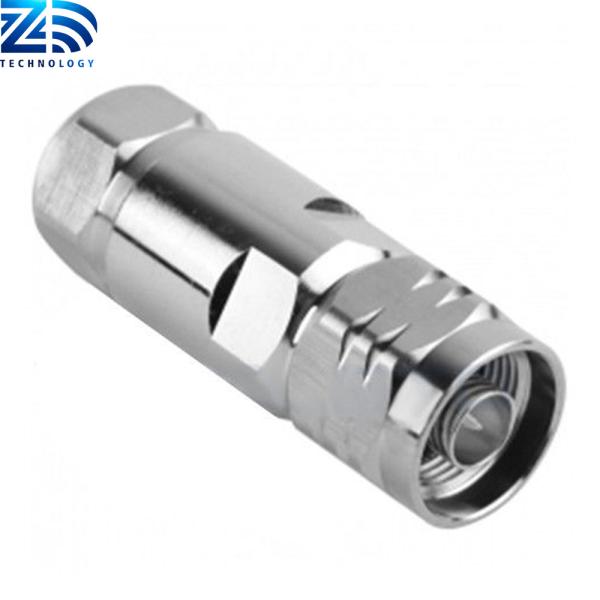

Factory Price RF Coaxial connector N male for 1/2 Superflexible feeder cable
Factory Price RF Coaxial connector N male for 1/2 Superflexible feeder cable
Specifications
Brand Name :
ZD
Model Number :
ZD-CN-NM-CF12S
Place of Origin :
China
MOQ :
100
Price :
USD1.8-2/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs per week
Delivery Time :
5-8 work days
Packaging Details :
25.5*21*21.5
Impedance :
50ohm
Material :
Brass alloy
Connector type :
N male
Product name :
N male for 1/2"Superflexible feeder cable connector
Temperature range :
-40-85
Vswr :
≤1.08
Description

Factory Price RF Coaxial connector N male for 1/2"Superflexible feeder cable

Factory Price RF Coaxial connector N male for 1/2


Quick Details

Place of Origin:
China (Mainland)
Brand Name:
 ZD
Model Number:
Mini din
Type:
Mini din
Application:
RF
Gender:
Male
Product Name:
 ZD-CN-NM-CF12S
Color:
Argent/Golden
Material:
Brass
Certificate:
ISO9001/CE/ROHS/FCC
Connector type:
mini din
Plating:
Nickel /Golden Palting
MOQ:
100 Piece
ODM/DEM:
Offered
Insulation Resistance:
≥ 10000 MΩ
Temperature Range:
-40°C to +85°C

Features

4.3/10 MINI DIN Male For 1/2" Superflexible Cable

Model:ZD-CN-NM-CF12s

Frequency: DC-18GHz

V.S.W.R: ≤ 1.10

PIM: < -159dBc@2X43dBm

Shell Plating: Nickel or Silver

Inner plating: Silver or Gold plate

Impedance: 50 Ω

Match Cable: 1/2" Flexible (Standard) Feeder

Temperature: -40°C- +85°C

Waterproof: IP68

Durability: 500 Cycles


* RF cable assemblies in 50 ohms can be ordered using the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .

* RF cable assemblies includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U

* RF cable assemblies can be produced with many different connector types and custom lengths depending on your needs and applications.
