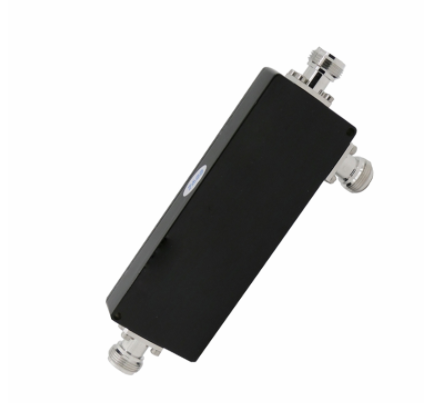

698-3800MHz N Female 5-30dB 5G IBS Components Coaxial RF Directional Coupler
698-3800MHz N Female 5-30dB 5G IBS Components Coaxial RF Directional Coupler
698-3800MHz N Female 5-30dB 5G IBS Components Coaxial RF Directional Coupler
698-3800MHz N Female 5-30dB 5G IBS Components Coaxial RF Directional Coupler
Specifications
Brand Name :
ZD
Model Number :
ZD-DC-738-100-05/06/07/15/20/30NF
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pcs per month
Delivery Time :
2 weeks
Connectors :
N female,50Ω
Operating Temperature(℃) :
-25~+65
Directivity(dB) :
≥15
VSWR :
≤1.3
PIM(dBc) :
＜-150@2×+43dBm
Application :
Indoor
Description

698-3800MHz N Female 5-30dB 5G IBS Components Coaxial RF Directional Coupler

Specifications:

1. All materials are RoHS approved

2. Competitive price

3. OEM service offered

4. We are able to supply various types of connector according to clients’ requirement

Application:

Widely used in communication, radar, and characteristics of indoor distribution system products:
1. Broadband 698MHz~3800MHz ,include GSM,CDMA,WLAN,PHS,WCDMA and so on .
2. High directivity
3. Low insertion loss
4. Low standing wave ratio​
5. High-power
698-3800MHz N Female 5-30dB 5G IBS Components Coaxial RF Directional Coupler
Frequency Range(MHz) 698~960,1427~3800
Variants 6dB 7dB 8dB 10dB 13dB 15dB 20dB 30dB
Coupling(dB) ±0.7 ±0.8 ±0.9 ±1 ±1.2 ±1.4 ±1.5 ±2
Insertion loss(dB) ≤1.8 ≤1.5 ≤1.2 ≤1 ≤0.7 ≤0.6 ≤0.4 ≤0.3
Port isolation,(dB) ≥15
VSWR ≤1.25
PIM(dBc) ≤-155@2×+43dBm
Power Handling(W) 300,Avg
Connectors N F,50Ω
Operating Temperature(℃) -30~+65
Application Indoor
Size(mm) 119×51×28(Excluding Connectors and Brackets)
Colour Black
