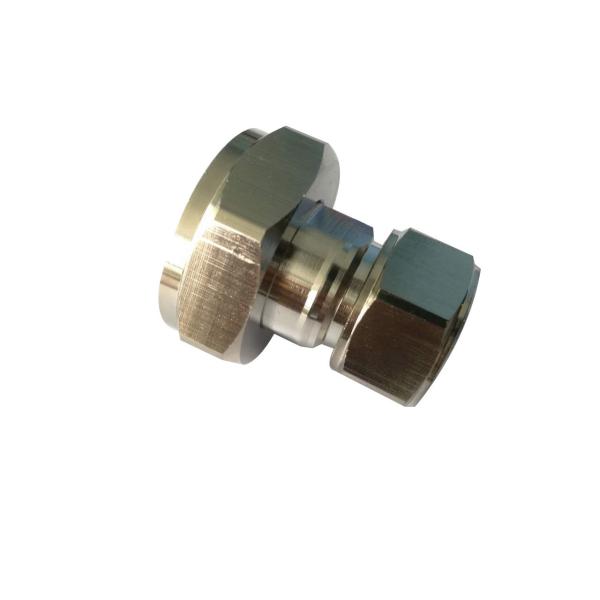

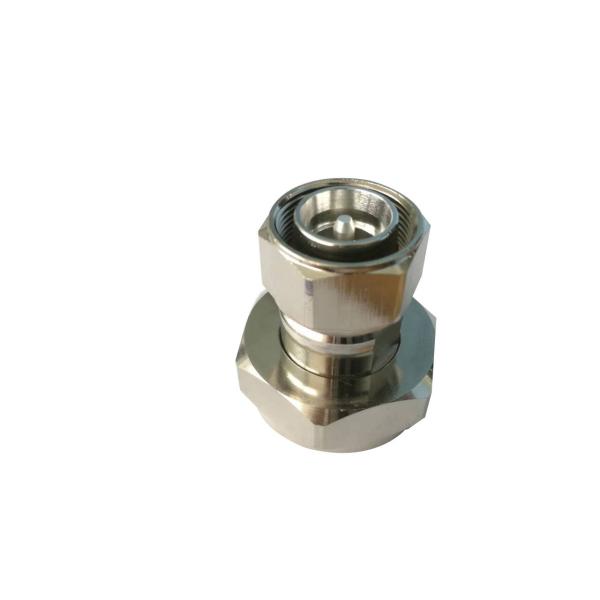

Mini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver Plated
Mini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver Plated
Mini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver Plated
Mini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver Plated
Mini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver Plated
Mini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver Plated
Mini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver Plated
Mini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver Plated
Specifications
Brand Name :
ZD
Model Number :
ZD-AD-MNDM/MNDM
Certification :
RoHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pieces/week
Delivery Time :
5-8 work days
Body :
Brass/Silver Plated
VSWR :
≤1.10@DC-3000MHz
PIM :
≤-160DBC
Insertion Loss :
≤0.10dB@DC'3GHz
Contact resistance :
4.3-10 type
Operating temper :
-65~+165℃
Description

Rf coaxial connector Mini Din 4.3-10 Male to Mini Din 4.3-10 Male Adaptor

Mini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver Plated TECHNICAL SPECIFICATION ZD
4310M-4310M-01 Rev:A/0

1.Figure

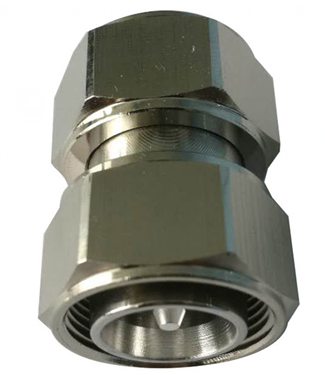

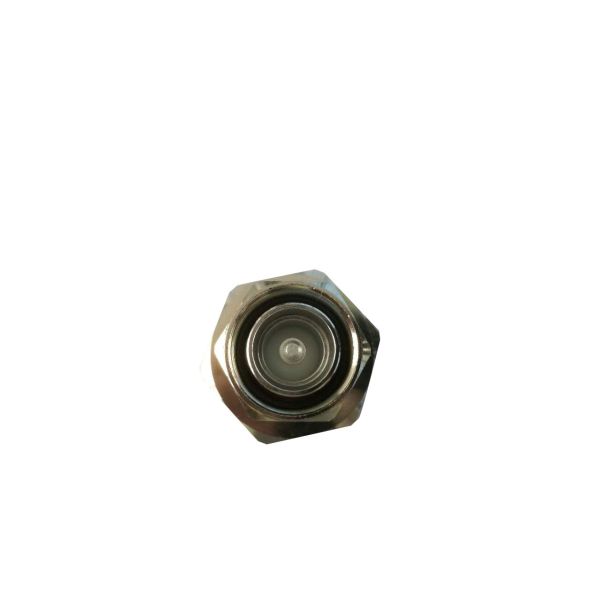

Mini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver Plated
2.Product Description
4310M-4310M 4.3-10 straight male to 4.3-10 straight male adapter
3. Material and Plating
Center contact Tin-bronze/ Silver Plated
Outer contact Tin-bronze/ Silver Plated
Body Brass/ Silver Plated
Dielectric PTFE
Gasket Silicon Rubber
Nut Brass/ Nickel Plated
4. Electrical Characteristics
Characteristics Impedance 50 Ohm
Frequency Range DC,6GHz
Insulation Resistance ≥10000 MΩ
Contact resistance 4.3-10 type Mini Din type
Center contact 5 MΩ ≤0.4MΩ
Outer contact ≤1.O MΩ ≤0.2MΩ
Dielectric Strength 2500V rms
Working voltage 1400V rms
Insertion Loss ≤0.10dB@DC'3GHz
VSWR ≤1.10@DC'3.0GHz
PIM(2x43dBm) ≤-160dBc
5. EnviroNFental and Mechanical Specifications
Durability (matings) ≥500 cycles
Thermal Shock Test Method MIL-STD-202F, Method 107G, Test Condition B
Vibration Test Method MIL-STD-202, Meth. 204, Cond. B
Temperature Range -65~+165℃
RoHS Compliant

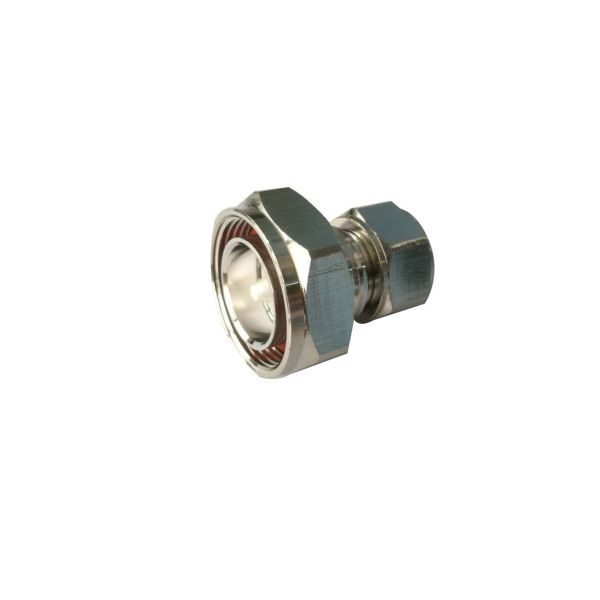

Mini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver PlatedMini Din 4.3-10 Male To Mini Din male RF Coaxial Connectors Adaptor Silver Plated

The facts and figures contained herein are carefully complied to the best of our knowledge, but they are intended for general informational purposes only.
