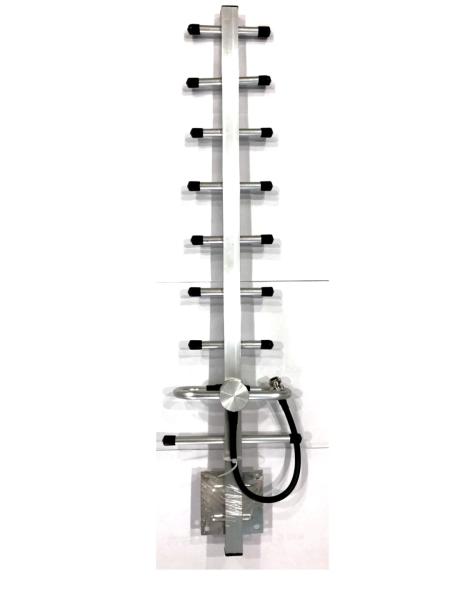

9 Elements GSM Directional Yagi Antenna 13DBi 900-1800MHz With N Female
9 Elements GSM Directional Yagi Antenna 13DBi 900-1800MHz With N Female
9 Elements GSM Directional Yagi Antenna 13DBi 900-1800MHz With N Female
9 Elements GSM Directional Yagi Antenna 13DBi 900-1800MHz With N Female
Specifications
Brand Name :
ZD
Model Number :
ZD-9E-OYA-896-13NF
Place of Origin :
China
MOQ :
10
Price :
USD6.50-9.00 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500/pieces per week
Delivery Time :
5-8 work days
Packaging Details :
cartons
Connector :
N-Female
Gain :
13dBi
coverage :
200 Square Meters
Color :
Silver
VSWR :
≤2.0
Working Temperature :
-40~60 °c
Polarization :
vertical or horizontal
Name :
outdoor yagi antenna
Description

9 Elements GSM Directional Yagi antenna 13DBi 900-1800MHz with N-Female for Cell Phone

Frequency Range:900-1800mhz
Connector:N-Female
Gain:13dBi
Coverage:200 Square Meters
Polarization:Horizontal+Vertical
Color:Silver YAGI Antenna
Weight:339.8g
VSWR:≤2.0
Working Temperature:40~60 °c

ELECTRICAL
Frequency Range 806-960-MHz
Bandwidth 154-MHz
Gain 13-dBi
Beamwidth H:48 V:40
F/B ratio ≥16-dB
VSWR ≤2.0
Polarization Horizontal or Vertical
Max power 100 -W
Nominal Impedance 50 -Ω
MECHANICAL
Connector N female /SMA male or customized
Antenna Dimension 710*190*54-mm
Weight 0.5-Kg
Rated Wind Velocity 60-m/s
Mounting Mast Diameter 40-50mm

9 Elements GSM Directional Yagi Antenna 13DBi 900-1800MHz With N Female

9 Elements GSM Directional Yagi Antenna 13DBi 900-1800MHz With N Female

9 Elements GSM Directional Yagi Antenna 13DBi 900-1800MHz With N Female

9 Elements GSM Directional Yagi Antenna 13DBi 900-1800MHz With N Female

Q :How can I get the sample to check your quality?

A :After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.

Q :What can I get the price?

A :We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

Q :What is your term of delivery?

A :We accept EXW,CIF, FOB Shenzhen . You can choosethe one which is the most convenient or cost effective for you.

Q :What about the lead time for the mass production?

A :Honestly, it depends on the order quantity and the season you place the order.
