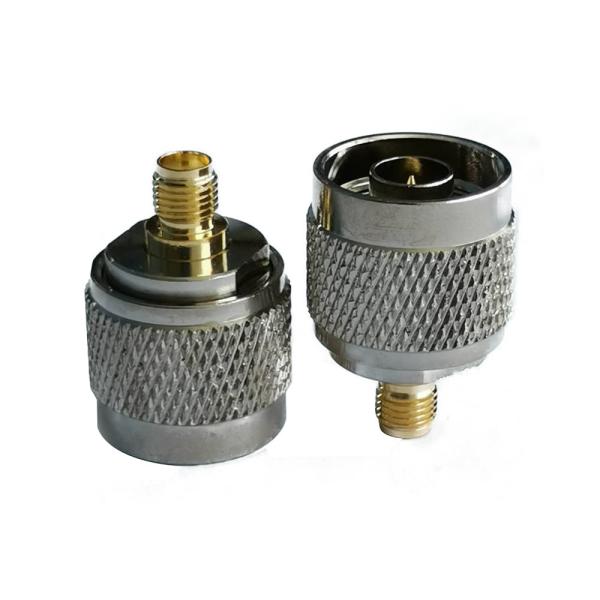

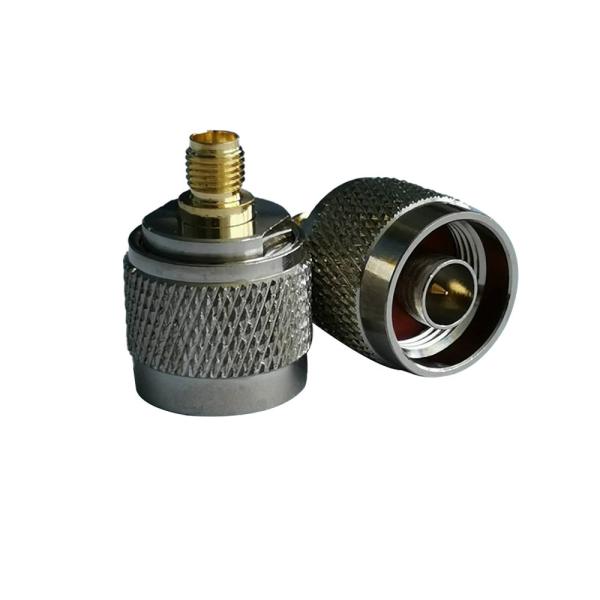

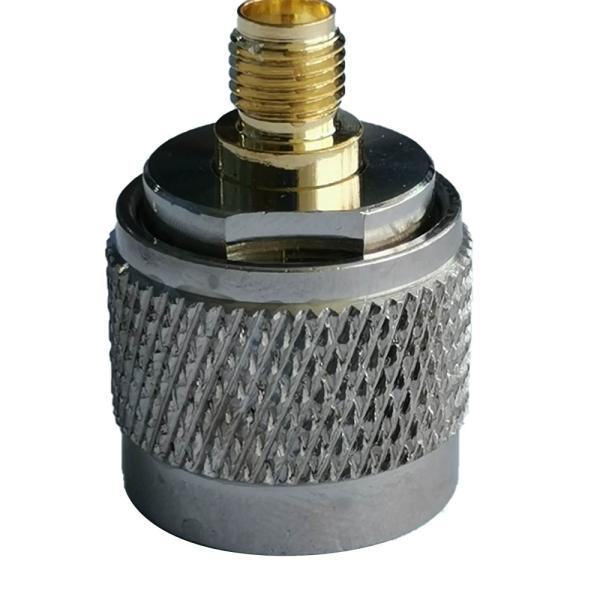

N Male RF Coaxial Connectors To SMA Female RF Coaxial Straight Connector Adaptor
N Male RF Coaxial Connectors To SMA Female RF Coaxial Straight Connector Adaptor
N Male RF Coaxial Connectors To SMA Female RF Coaxial Straight Connector Adaptor
N Male RF Coaxial Connectors To SMA Female RF Coaxial Straight Connector Adaptor
N Male RF Coaxial Connectors To SMA Female RF Coaxial Straight Connector Adaptor
N Male RF Coaxial Connectors To SMA Female RF Coaxial Straight Connector Adaptor
N Male RF Coaxial Connectors To SMA Female RF Coaxial Straight Connector Adaptor
N Male RF Coaxial Connectors To SMA Female RF Coaxial Straight Connector Adaptor
Specifications
Brand Name :
ZD
Model Number :
ZD-AD-NM/SMA-F
Place of Origin :
China
MOQ :
10pieces
Price :
USD0.50-3.00per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pieces per week
Delivery Time :
5-8worck days
Material :
stainless stee
Impedance :
50ohm
Frequency Range-MHz :
DC-3GHz
PIM :
≤-160DBC
Dielectric Strength :
2500V rms
VSWR :
VSWR≤1.06
Description

N Male to SMA Female RF coaxial straight connector Adaptor

N-Male to SMA-Female Adapter
PRODUCT DESCRIPTION


INTERFACE

Graphics for reference only

N-Male to N-Male

According to IEC 60169-16

Mounting angle Straight
ELECTRICAL PROPERTIES

Impedance

50

Frequency range,GHzDC~3

3rd order inter-modulation Inner contact resistance Outer contact resistance
Insulation resistance

dBc@2×20Wm
m
M•km

≤-150
≤1.0
≤1.0
≥5000

Dielectric withstanding voltageV, RMS,50Hz, at sea level≥2500
VSWR≤1.06
Insertion lossdB≤0.08
MATERIAL & PLATING

Inner contact

Brass alloy plated with silver

Outer contact Brass alloy plated with Tri-Alloy
Insulator PTFE
ENVIRONMENTALPROPERTIES
Temperature range, ℃

-40~+85

Water proof IP67
2011/65EU(ROHS) compliant


N Male RF Coaxial Connectors To SMA Female RF Coaxial Straight Connector AdaptorN Male RF Coaxial Connectors To SMA Female RF Coaxial Straight Connector AdaptorN Male RF Coaxial Connectors To SMA Female RF Coaxial Straight Connector Adaptor
