50ohm Impedance Rectangular Patch Antenna , 2×2 MIMO Panel Antenna N - Female
50ohm Impedance Rectangular Patch Antenna , 2×2 MIMO Panel Antenna N - Female
Specifications
Brand Name :
ZD
Model Number :
ZD698-4000X07i70A
Certification :
ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2 weeks
Frequency :
698-4000MHz
Gain :
5-8.5dBi
Polarization :
±45°
VSWR :
≤1.8
PIM :
≤-153dBc
Maximum Power :
50
Impedance :
50ohm
Connector type :
N-Female×2
Description

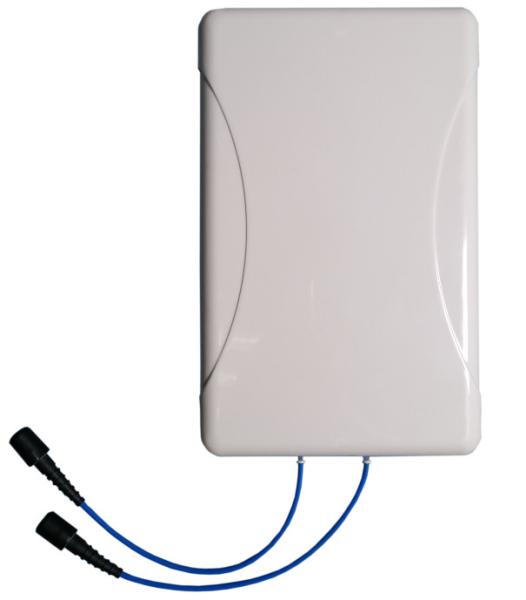

Indoor Wide band Panel Antenna , coverage 698MHz - 4000MHz ,2×2 MIMO Panel Antenna

Features and product description

  • Wideband Directional Antenna , coverage 698MHz - 4000MHz.
  • Typically used in indoor distribution of MIMO and LTE services.
  • Compact, light-weight and easy to install.
  • PIM<-153dBc @ 2x20 W.
  • Dual Polarization±45° for Whole Band 698-4000Mhz.

  • N-female.

Electrical Specifications
Item No. ZD698-4000X07i70A
Frequency Range MHz 698-960 1710-2700 3300-4000
Gain dBi 6.0±1 7.5±1 7.5±1
Polarization ±45°
Beam width Horizontal deg 75 70 68
Vertical 70 70 60
VSWR ≤1.8 ≤1.8 ≤1.8
Isolation dB >20 >23 >23
PIM, 3rd Order, 2 x 20 W, dBc ≤-153
Input Power per Port, maximum watts 50
Mechanical Specifications
Dimensions, HxWxD mm 308x190x82
Weight, without Mounting Kit kg 1.0
Radome Material and Color ABS, White, RAL9003
Mounting Kit On-wall
Connector Type and Location N-Female×2
Operational Temperature oC -55 to +60
Operational Humidity % < 95
