1.8 VSWR Indoor Ceiling Antenna Coverage 698MHz - 6000MHz With N - Female Connector
1.8 VSWR Indoor Ceiling Antenna Coverage 698MHz - 6000MHz With N - Female Connector
Specifications
Brand Name :
ZD
Model Number :
ZD698-6000V05i360A
Certification :
ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
2 weeks
Frequency Range :
698-6000MHz
Gain :
1.3-5.5dBi
PIM :
≤-153dBc
Impedance :
50ohm
Connector type :
N-Female
Operational Temperature :
-40~55
VSWR :
1.8
Mounting Kit :
Ceiling, via hole(standard)
Description

Indoor Wide band Omni Antenna , coverage 698MHz - 6000MHz with N-female connector

the product spec you can click and download here:ZD698-6000V05i360A.pdf

Feature and product Description

  • Wideband Omni Antenna , coverage 698MHz - 6000MHz .
  • Typically both used in indoor distribution of GSM/CDMA WIFI/3G/LTE services.
  • Low return loss,Stable performance.
  • Compact, light-weight and easy to install.
  • Supplied with mounting clamp.
  • PIM<-153dBc @ 2x20 W.

Electrical Specifications
Item No. ZD698-6000V05i360A
Frequency Range MHz 698-806 806-960 1710-2700 3400-6000
Gain dBi 1.8±0.5 2.0±0.5 3.0±1.0 4.5±1.0
Polarization Vertical
Beam width Horizontal deg 360
Vertical 90 70 35 30
VSWR ≤1.8 ≤1.5 ≤1.5 ≤1.8
PIM, 3rd Order, 2 x 20 W, dBc ≤-153
Input Power, maximum watts 50
Impedance ohm 50
Mechanical Specification
Connector Type N-female
Dimensions mm Φ203×115
Weight kg 0.5
Mounting Kit Ceiling, via hole (standard)
Radome Material and Color ABS, White, RAL9003
Operational Temperature oC -40～55
Operational Humidity % < 95

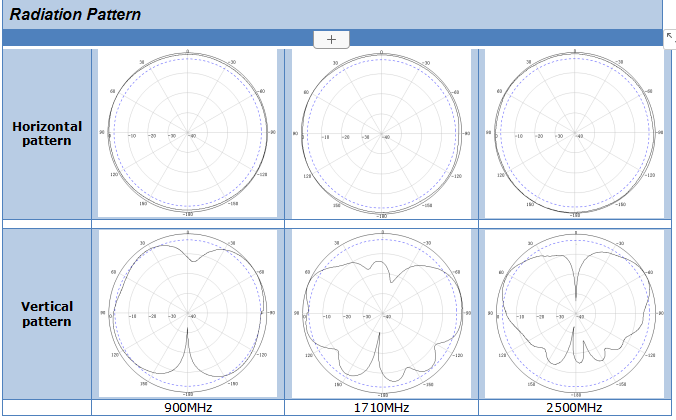

Radiation Pattern

1.8 VSWR Indoor Ceiling Antenna Coverage 698MHz - 6000MHz With N - Female Connector
