High quality Base Station Antennas Fiberglass 6-port tri-sector omni directional antenna
High quality Base Station Antennas Fiberglass 6-port tri-sector omni directional antenna
Specifications
Brand Name :
ZD
Model Number :
ZD698-2690XXX6i6i6i360A
Certification :
ROHS
Place of Origin :
China
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
100000 pcs per month
Delivery Time :
2 weeks
Frequency :
698-2690MHz
Gain :
6dBi
VSWR :
≤1.5
Isolation :
≥25
PIM, 3rd Order, 2 x 20 W, :
≤-150
Impedance :
50
Description

High quality Base Station Antennas Fiberglass 6-port tri-sector omni directional antenna

The product spec you can click and download here:ZD698-2690XXX6i6i6i360A.pdf

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

CDMA,GSM system

Wireless communication and data transmission system

Electrical Specifications
Item No. ZD698-2690XXX6i6i6i360A
Frequency Range MHz 698-960 1710-2690
Gain dBi 6 6
Polarization ±45° 2×±45°

Beam width

(Typical )

 Horizontal deg 360
Vertical 35 32
VSWR ≤1.5
Isolation dB ≥25
PIM, 3rd Order, 2 x 20 W, dBc ≤-150
Input Power per Port, maximum watts 150
Impedance ohm 50
Lightning Protection Direct Ground
Mechanical Specifications

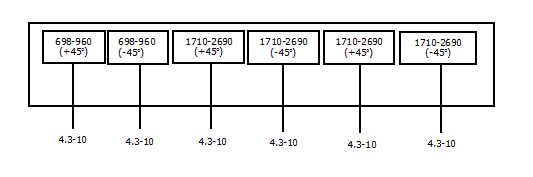

Connector Type 6×4.3-10 Female
Antenna Dimensions (Height x Diameter) mm 800x355
Weight kg 12.0
Radome Material and Color Fiberglass
Survival Wind Speed km/hr 200
Operational Temperature oC -40 to +60
Operational Humidity % < 90
