4×4 MIMO Indoor Ceiling Antenna 2.5 - 5.5dBi Gain With Low Return Loss
4×4 MIMO Indoor Ceiling Antenna 2.5 - 5.5dBi Gain With Low Return Loss
Specifications
Brand Name :
ZD
Model Number :
ZD698-4000HHHH05i360A
Certification :
ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2 weeks
Frequency :
698-4000MHz
Gain :
2.5-5.5dBi
Polarization :
Linear×4
VSWR :
≤1.8
PIM :
≤-153dBc
Maximum Power :
50
Impedance :
50ohm
Connector type :
N-Female×4
Description

Indoor Wide band Omni Antenna , coverage 698MHz - 4000MHz ,4×4 MIMO Antenna

the product spec you can click and download here:ZD698-4000HHHH05i360A(PRELIMINARY).pdf

Features and product description

  • Wideband Omni Antenna,coverage 698MHz - 4000MHz .
  • Typically used in indoor distribution of LTE and MIMO services.
  • Low return loss, Good radiation pattern, Stable performance.
  • Compact, light-weight and easy to install.
  • PIM<-153dBc @ 2x20 W.
Electrical Specifications
Item No. ZD698-4000HHHH05i360A
Frequency Range MHz 698-960 1710-2700 3300-4000
Gain dBi 3±0.5 3.5±0.5 4.5±1.0
Polarization Linear×4
Beam width(Typical ) Horizontal deg OMNI (360)
Vertical 90 85 45
VSWR ≤1.8 ≤1.8 ≤1.8
Isolation dB >13 >15 >20
PIM, 3rd Order, 2 x 20 W dBc ≤-153
Maximum Power watts 50
Impedance ohm 50
Mechanical Specifications
Connector Type N-Female×4
Dimensions mm Φ360×24
Weight kg 0.9
Mounting Kit Ceiling, via hole (standard)
Radome Material and Color ABS, White, RAL9003
Operational Temperature oC -55～60
Operational Humidity % < 95

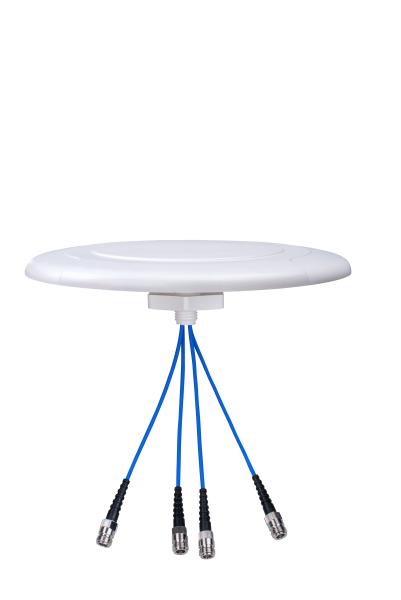

4×4 MIMO Indoor Ceiling Antenna 2.5 - 5.5dBi Gain With Low Return Loss4×4 MIMO Indoor Ceiling Antenna 2.5 - 5.5dBi Gain With Low Return Loss

4×4 MIMO Indoor Ceiling Antenna 2.5 - 5.5dBi Gain With Low Return Loss
