5g antenna 698MHz - 4000MHz Omni Indoor Panel Antenna 50 Watts Maximum Input Power
5g antenna 698MHz - 4000MHz Omni Indoor Panel Antenna 50 Watts Maximum Input Power
5g antenna 698MHz - 4000MHz Omni Indoor Panel Antenna 50 Watts Maximum Input Power
5g antenna 698MHz - 4000MHz Omni Indoor Panel Antenna 50 Watts Maximum Input Power
Specifications
Brand Name :
ZD
Model Number :
ZD698-4000HH06i360A
Certification :
ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
2 weeks
Frequency :
698-4000MHz
Gain :
1~7dBi
VSWR :
1.8
PIM :
≤-153dBc
Impedance :
50ohm
Connector type :
N-female×2
Description

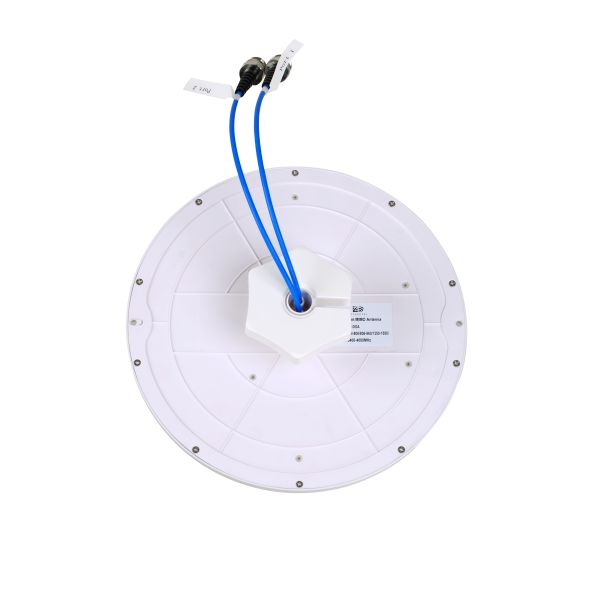

Indoor Wide band Omni Antenna 698MHz - 4000MHz Omni Antenna with Female

The product spec you can click and download here:ZD698-4000HH06i360A.doc

Electrical Specifications
Item No. ZD698-4000HH06i360A
Frequency Range MHz

698-806

806-960

1350-1550

 1710-2700 3300-4000
Gain dBi 1.5±0.5 2.2±0.5 3.5±0.5 4.5±1.0 6.0±1.0
Polarization Linear Horizontal
VSWR ≤1.8 ≤1.8 ≤2.0 ≤1.8 ≤1.8
Isolation dB ≥17 ≥17 ≥15 ≥20 ≥25
PIM, 3rd Order, 2 x 20 W, dBc ≤-153
Input Power, maximum watts 50
Impedance ohm 50
Mechanical Specification
Connector Type N-female×2
Size mm Φ266×18
Antenna Weight kg 0.5
Mounting Kit Ceiling, via hole (standard)
Radome Material and Color ABS, White, RAL9003
Operational Temperature oC -55～60
Operational Humidity % < 95

5g antenna 698MHz - 4000MHz Omni Indoor Panel Antenna 50 Watts Maximum Input Power

5g antenna 698MHz - 4000MHz Omni Indoor Panel Antenna 50 Watts Maximum Input Power5g antenna 698MHz - 4000MHz Omni Indoor Panel Antenna 50 Watts Maximum Input Power

5g antenna 698MHz - 4000MHz Omni Indoor Panel Antenna 50 Watts Maximum Input Power

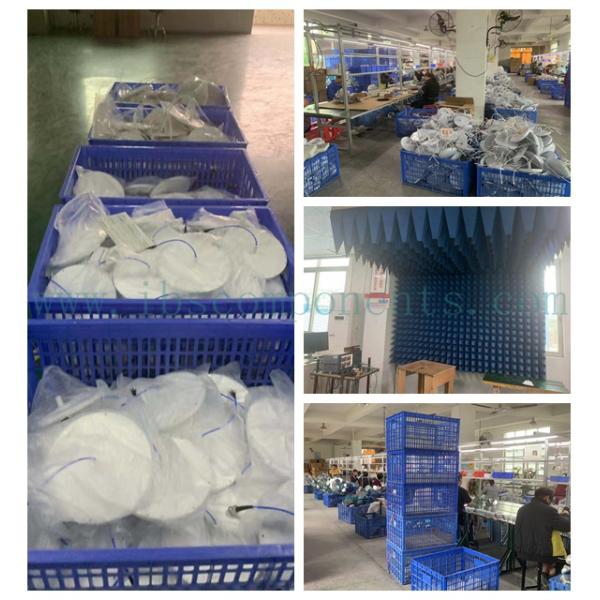

1. We have our own R&D team and have 17 R&D engineers,with independent R&D lab,can quickly provide upmarket product customerization services for customers.

2. Owning full set of available testing equipment to guarantee the quality of products.

3. Adopt advanced ATE testing system,owning full frequency of Intermodulation test equipment,perfect ERP management system and blameless process quality control system to promise the high qualification rate.

4. We have 6 passive components production lines,150 employees,adopt advanced automatic screw machine,production capacity can up to 5000PCS/ per day.

5. Our factory have more than 8 years production experience on antenna and passive components,have a rich product category and high cost-effective,is the leader in antenna and the passive communications industry in China.
