11dBi Dual Polarized Outdoor Directional Panel Antenna 698 - 2690MHz Frequency
11dBi Dual Polarized Outdoor Directional Panel Antenna 698 - 2690MHz Frequency
Specifications
Brand Name :
ZD
Model Number :
ZD698-2690XXXXX11i11i11i11i11i65B
Certification :
ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
2 weeks
Frequency :
698-2690MHz
Gain :
10.5-12.5dBi
VSWR :
≤1.5
Isolation :
≥26
PIM, 3rd Order, 2 x 20 W, :
≤-150
Impedance :
50
Description

10 Port 698-2690MHz 11dBi Dual Polarized directional gsm base station panel outdoor sector antenna

The product spec you can click and download here:ZD698-2690XXXXX11i11i11i11i11i65B.pdf

Electrical Specifications
Item No. ZD698-2690XXXXX11i11i11i11i11i65B
Frequency Range MHz 698-806 806-870 870-960 1710-1880 1880-2170 2170-2690
Gain dBi 10.5 11.5 12 11 11.5 12.5
Polarization 1 x±45 4 x±45

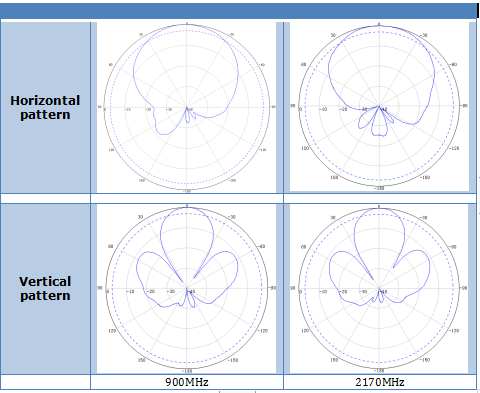

Beam width Horizontal deg 68±10 65±10
Vertical 30 33
Front-To-Back Ratio (-18030) dB > 20 > 25
VSWR ≤1.5:1 ≤1.5:1
Isolation dB > 26 > 26
PIM, 3rd Order, 2 x 43 dBm, dBc -150
Maximum Power W 250
Impedance Ω 50
Mechanical Specifications
Dimensions, HxWxD mm 990x328x148
Weight, without Mounting Kit kg 10.5
Radome Material and Color Fiberglass, gray

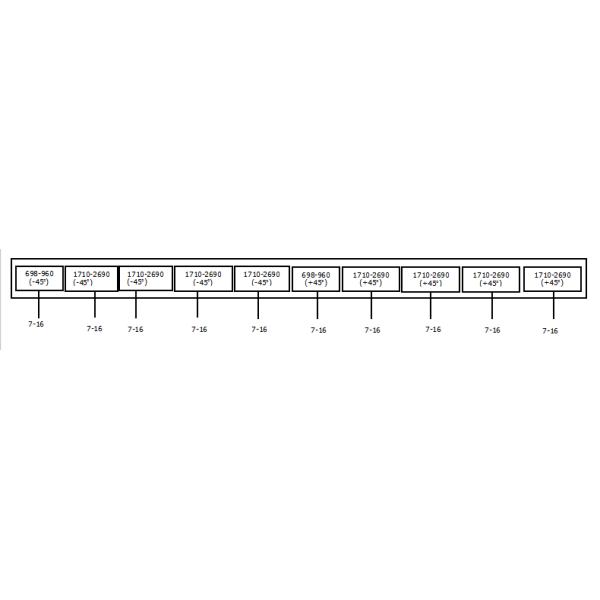

Connector Type and Location 10 x 7-16 DIN Female,Bottom
Mounting hardware mm Φ45~Φ95
Operational Wind Speed km/h 200
Operational Temperature oC -40 to +60
Operational Humidity % < 95

11dBi Dual Polarized Outdoor Directional Panel Antenna 698 - 2690MHz Frequency11dBi Dual Polarized Outdoor Directional Panel Antenna 698 - 2690MHz Frequency11dBi Dual Polarized Outdoor Directional Panel Antenna 698 - 2690MHz Frequency

Our factory have more than 8 years production experience on antenna and passive components,have a rich product category and high cost-effective,is the leader in antenna and the passive communications industry in China.We have 6 passive components production lines,150 employees,adopt advanced automatic screw machine,production capacity can up to 5000PCS/ per day.
