8 Ports 1710 - 2690MHz Flat Panel Wifi Antenna 50Ω Impedance 505×418×140mm
8 Ports 1710 - 2690MHz Flat Panel Wifi Antenna 50Ω Impedance 505×418×140mm
Specifications
Brand Name :
ZD
Model Number :
ZD1710-2690_3400-3800XXXXXXXX11_11i65_65A
Certification :
ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
2 weeks
Frequency :
1710-2690MHz
Gain :
11dBi
VSWR :
≤1.5
Isolation :
≥25
PIM, 3rd Order, 2 x 20 W, :
≤-150
Impedance :
50
Description

8 port 1710-2690MHz and 8port 3400-3800MHz 65º,11dBi Panel antenna

The product spec you can click and download here:ZD1710-2690_3400-3800XXXXXXXX1111i65_65A.pdf

ZD Telecom was newly established in Sep. 2009 by its founder who had been working in one of the earliest companies in the wireless/RF industry of China for more than 10 years of R&D and management after graduation from the best in China of“ University of Electronic Science & Technology of China”,with a back up of a group of veteran engineers cherishing the value of “professional(attitude) & excellent(products)”.

We are true manufacturer with a facilities of 2000㎡ and 150 heads of working force, not any of trading or solution provider companies, specializing in products of coverage/enhancement/optimization for wireless network and previously have been working as a role of OEM for some other big names of telecom equipment suppliers. We now step forward to the up front and devote to adheres to the business strategy of “customer oriented and continuous improvement”, and closely keeping to the principle of customer satisfaction, quality first, competitive price, fast delivery and service in individual place.

Electrical Specifications
Item No. ZD1710-2690_3400-3800XXXXXXXX11_11i65_65A
Frequency Range MHz 1710-2170 2200-2690 3400-3800
Gain dBi 11.0 11.3 11.0
Polarization 4×45 4×45

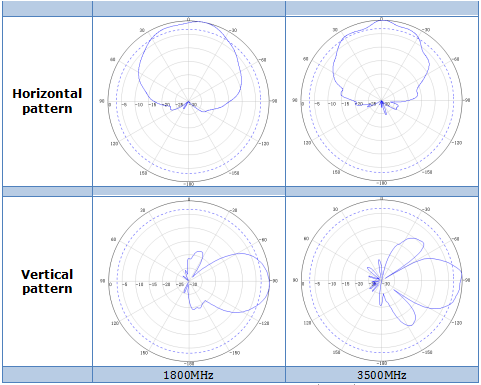

Beam width Horizontal deg 70 60 68
Vertical 37 26 30
Front-to-Back Ratio dB ≥20 ≥20
Port Isolation dB ≥25 ≥25
VSWR ≤1.5 ≤1.5
PIM, 3rd Order, 2 x 20 W, dBc -150 N/A
Maximum Power W 150
Impedance Ω 50
Lightning Protection Direct Ground
Mechanical Specifications
Dimensions,HxWxD mm 505×418×140
Weight, without Mounting Kit kg 7.8
Weight, with Mounting Kit kg 13.1
Radome Material and Color UV Resistant PVC, Light Grey, RAL7035

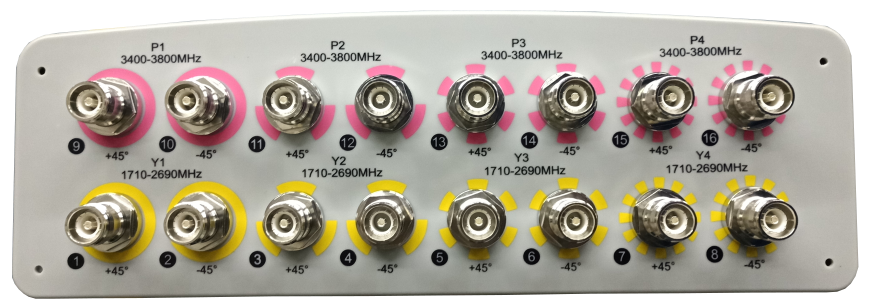

Connector Type and Location 16×4.3-10 Female, Bottom
Survial Wind Speed km/hr 200
Operational Temperature oC -40 to +60
Operational Humidity % < 95
Shipping Dimensions, HxWxD mm 840×480×210
Shipping Weight kg 14.5

8 Ports 1710 - 2690MHz Flat Panel Wifi Antenna 50Ω Impedance 505×418×140mm8 Ports 1710 - 2690MHz Flat Panel Wifi Antenna 50Ω Impedance 505×418×140mm8 Ports 1710 - 2690MHz Flat Panel Wifi Antenna 50Ω Impedance 505×418×140mm
