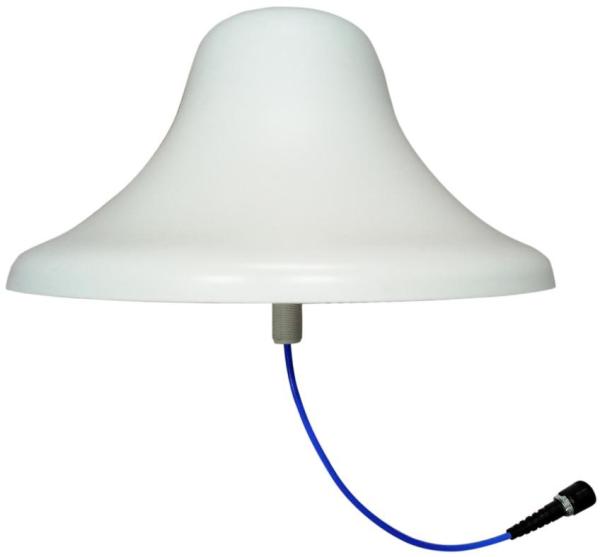

WIFI / 3G / LTE / 5G Wideband Omni GSM Indoor Antenna Coverage 380MHz - 6000MHz
WIFI / 3G / LTE / 5G Wideband Omni GSM Indoor Antenna Coverage 380MHz - 6000MHz
Specifications
Brand Name :
ZD
Model Number :
ZD380-6000V05i360A
Certification :
RoHS
Place of Origin :
china
MOQ :
Negotiable
Price :
Negotiable
Frequency :
380-6000Mhz
Gain :
2/5dBi
Material :
ABS
Impedance :
50
Connector type :
N female
Spec :
download from decription of goods
Description

GSM/CDMA WIFI/3G/LTE/5G Wideband Omni Antenna coverage 380MHz - 6000MHz

If you are interested in the product,you can download the spec here:ZD380-6000V05i360A.pdf

Electrical Specifications
Item No. ZD380-6000V05i360A
Frequency Range MHz 380-520 698-960 1710-6000
Gain dBi 2.0±1.0 2.5±1.0 4.0±1.0
Polarization Vertical
Beam width Horizontal deg 360
Vertical 90 90 35
VSWR ≤3.0 ≤2.0 ≤2.0
PIM, 3rd Order, 2 x 20 W, dBc / ≤-153 ≤-153
Input Power, maximum watts 50
Impedance ohm 50
Mechanical Specification
Connector Type N-female
Size mm Φ298×152
Antenna Weight kg 0.9
Mounting Kit Ceiling, via hole (standard)
Radome Material and Color ABS, White, RAL9003
Operational Temperature oC -55～60
Operational Humidity % < 95

WIFI / 3G / LTE / 5G Wideband Omni GSM Indoor Antenna Coverage 380MHz - 6000MHz
