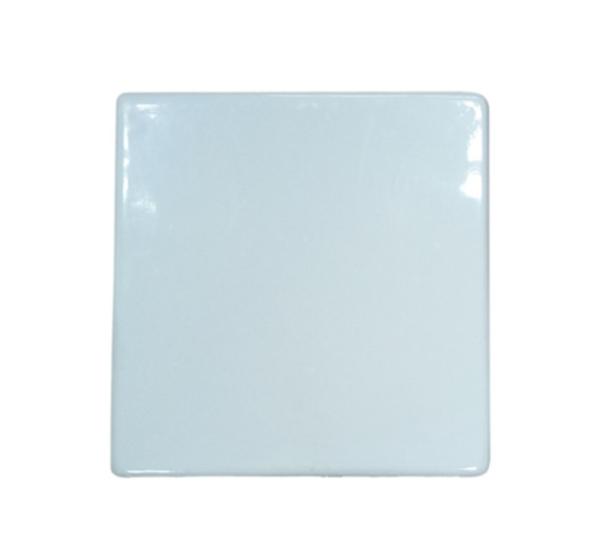

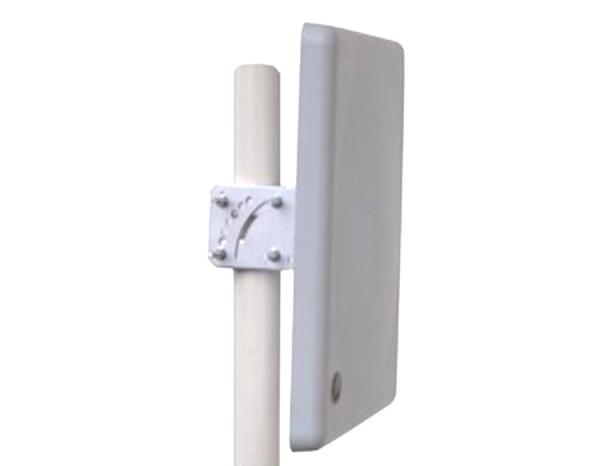

High Capacity Venue MIMO Patch Panel Antenna 2 Ports Low PIM 13dBi Directional
High Capacity Venue MIMO Patch Panel Antenna 2 Ports Low PIM 13dBi Directional
High Capacity Venue MIMO Patch Panel Antenna 2 Ports Low PIM 13dBi Directional
High Capacity Venue MIMO Patch Panel Antenna 2 Ports Low PIM 13dBi Directional
Specifications
Brand Name :
ZD
Model Number :
ZD1710-2690X14i33B
Certification :
ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 pcs per month
Delivery Time :
2 weeks
Frequency :
1710-2690MHz
Gain :
13dBi
VSWR :
≤1.5
Isolation :
≥25
PIM, 3rd Order, 2 x 20 W, :
≤-150
Impedance :
50
Description

5G Products Low PIM 13dBi Directional High Capacity Venue MIMO Panel Antenna 2 ports, 698-3800MHz

The product spec you can click and download hereZDV698-3800X13i35A.pdf

Item No. ZDV698-3800X13i35A (PRELIMINARY)
Frequency Range MHz 698-960 1710-2690 3400-3800
Gain dBi 13.0 13.0 12.0
Polarization 45
Beam width Horizontal deg 35 35 33
Vertical 33 33 30
Front-to-Back Ratio dB ≥25 ≥25 ≥25
Port Isolation dB ≥25 ≥25 ≥25
VSWR ≤1.5 ≤1.5 ≤1.5
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 N/A
Maximum Power W 200
Impedance Ω 50
Lightning Protection Direct Ground
Mechanical Specifications
Dimensions,HxWxD mm 800×800×120
Weight, without Mounting Kit kg 12
Weight, with Mounting Kit kg 18
Radome Material and Color UV Resistant PVC, Light Grey, RAL7035
Connector Type and Location 2×4.3-10 Female, Back
Survial Wind Speed km/hr 200
Operational Temperature oC -40 to +60
Operational Humidity % < 95

High Capacity Venue MIMO Patch Panel Antenna 2 Ports Low PIM 13dBi Directional
High Capacity Venue MIMO Patch Panel Antenna 2 Ports Low PIM 13dBi Directional

High Capacity Venue MIMO Patch Panel Antenna 2 Ports Low PIM 13dBi Directional
