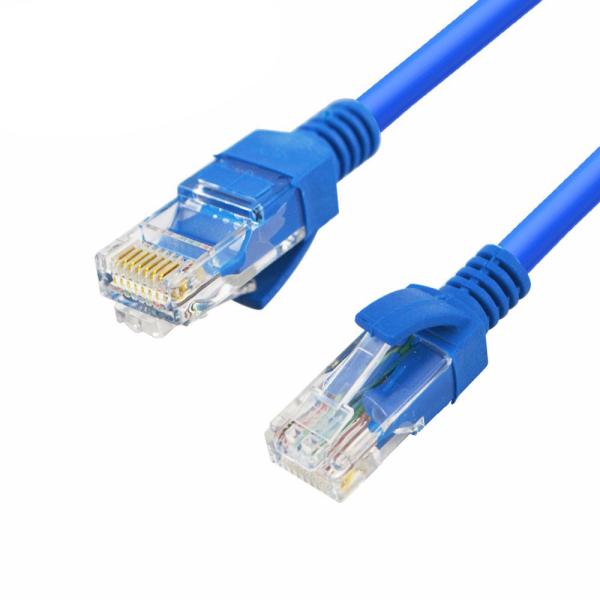

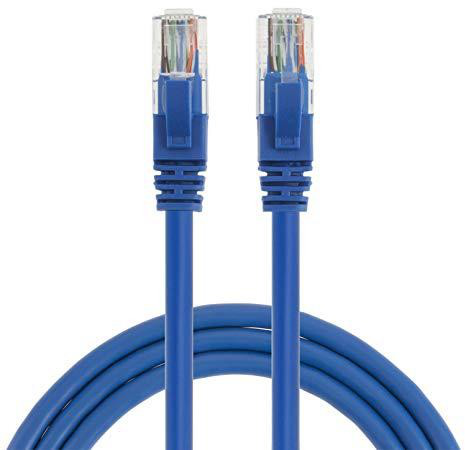

RJ45 CAT5E UTP / 4P/ 26AWG IBS Components COPPER CONDUCTOR PVC PATCH CORD
RJ45 CAT5E UTP / 4P/ 26AWG IBS Components COPPER CONDUCTOR PVC PATCH CORD
RJ45 CAT5E UTP / 4P/ 26AWG IBS Components COPPER CONDUCTOR PVC PATCH CORD
RJ45 CAT5E UTP / 4P/ 26AWG IBS Components COPPER CONDUCTOR PVC PATCH CORD
RJ45 CAT5E UTP / 4P/ 26AWG IBS Components COPPER CONDUCTOR PVC PATCH CORD
RJ45 CAT5E UTP / 4P/ 26AWG IBS Components COPPER CONDUCTOR PVC PATCH CORD
Specifications
Brand Name :
ZD
Model Number :
ZD5E-PC502
Certification :
RoHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs one month
Delivery Time :
3-15 days
Packaging Details :
Standard exporting cartons or as customer required
Name :
PVC PATCH CORD
type :
indoor
Color :
White
Length :
2M
Description

RJ45 CAT5E UTP/4P/26AWG Copper Conductor PVC Patch Cord

Features:

1.Complies with Category 5E , ANSI/TIA/EIA 568B & ISO/IEC 11801 standard,RJ45 standard.

2.Supports transmission of digital and 3.analogue voice, data and video signal.

Rated Temperature: -20° to +75°

Application:

100 Base T (IEEE 802.3)

Fast Ethernet (IEEE 802.3u)

100vg-AnyLAN (IEEE 802.12)

Token Ring (IEEE 802.5)

TP-PMD (ANSI X3T9.5)

100 Mbps CDDI

ATM 155 Mbps

Cable Construction:

Inner conductor

 Material Bare Copper
Diameter 7*0.16mm (±0.01) * 4P

Insulation(Dielectric)

 Material Color-coded PE (Polyethylene)
Thickness ≥ 0.16mm
Diameter 0.88± 0.03mm
Length Meter 2M

Outer Jacket

 Material New PVC
Nominal O.D 5.0mm ± 0.20mm
Color White

Twisted pair

N/A

Pair 1 : Orange, White / Orange Pair 2 : Green, White / Green Pair 3 : Green, White / Green

Pair 4 : Brown, White / Brown

Performance:

Sheath Physical Properties

Before Aging

 Tensile Strength (Mpa) ≥13.5
Elongation (%) ≥150
Aging Period ℃*hrs 100℃*24h*7d

After Aging

 Tensile Strength ≥12.5
Elongation (%) ≥125
Cold Bend -20℃±2℃*4h No Visible Cracks

Electrical Characteristics (20℃)

 1.0-100.0MHz Impedance (Ω) 100±15
Delay Shew 20℃(ns/100m) ≤45
Capacitance (nF/100M) MAX 5.6
DC Resistance 20℃(Ω/100m)MAX 9.5

DC Conductor

Resistance Unbalance

 (%) MAX 5.0

RJ45 CAT5E UTP / 4P/ 26AWG IBS Components COPPER CONDUCTOR PVC PATCH CORDRJ45 CAT5E UTP / 4P/ 26AWG IBS Components COPPER CONDUCTOR PVC PATCH CORDRJ45 CAT5E UTP / 4P/ 26AWG IBS Components COPPER CONDUCTOR PVC PATCH CORD
