7/16 DIN Male To N Female Right Angle Coaxial Cable Connector 2500V Rms Dielectric Strength
7/16 DIN Male To N Female Right Angle Coaxial Cable Connector 2500V Rms Dielectric Strength
7/16 DIN Male To N Female Right Angle Coaxial Cable Connector 2500V Rms Dielectric Strength
7/16 DIN Male To N Female Right Angle Coaxial Cable Connector 2500V Rms Dielectric Strength
Specifications
Brand Name :
ZD
Model Number :
ZD-AD-DM-NFR
Place of Origin :
China
MOQ :
100 pieces
Price :
USD 1.2-2.0 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per week
Delivery Time :
5-8work days
Packaging Details :
by cartons
Connector type :
N and Din Connector
Frequency Range-MHz :
DC-11GHz
PIM :
≤-160DBC
Operating temperature ( ) :
-65~+165℃
Dielectric Strength :
2500V rms
Body :
Brass/Silver Plated
Description

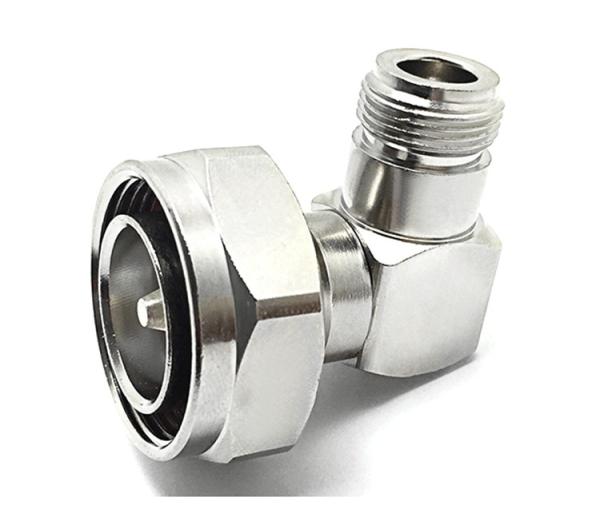

RF coaxial connector 7/16 DIN male to N female right angle adapter

The facts and figures contained herein are carefully complied to the best of our knowledge, but they are intended for general informational purposes only.

7/16 DIN Male To N Female Right Angle Coaxial Cable Connector 2500V Rms Dielectric Strength

DIN Male to N Female right angle rf adaptor
Center contact
Tin Bronze / Silver Plating
Body & Outer Conductor
Brass / Trimetal Plating
Dielectric
PTFE
Gasket
Silicon Rubber
Characteristics Impedance
50 Ohm
Frequency Range
DC~11GHz
Insulation Resistance
≥5000MΩ
Contact resistance
Type
N type female
DIN type male
Center contact
≤1.5mΩ
≤0.4mΩ
Outer contact
≤1.0mΩ
≤0.2mΩ
Dielectric Strength
2500V rms
Working voltage
1000V rms
Insertion Loss
@3 GHz
≤0.10dB
VSWR
≤1.10@DC~3.0GHz
Durability (matings)
≥500 cycles
Mechanical Shock Test Method
MIL-STD-202F, Method 107G, Test Condition B
Vibration Test Method
MIL-STD-202, Meth. 204, Cond. B
Temperature Range
-65~+165℃
RoHS
Compliant
