Specifications
Brand Name :
ZD
Model Number :
ZD-AD-DF-NMR
Place of Origin :
China
MOQ :
100 pieces
Price :
USD 1.2-2.0 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per week
Delivery Time :
5-8work days
Packaging Details :
by cartons
Connector type :
N and Din Connector
Frequency Range-MHz :
DC-11GHz
PIM :
≤-160DBC
Operating temperature ( ) :
-65~+165℃
Dielectric Strength :
2500V rms
Body :
Brass/Silver Plated
Description

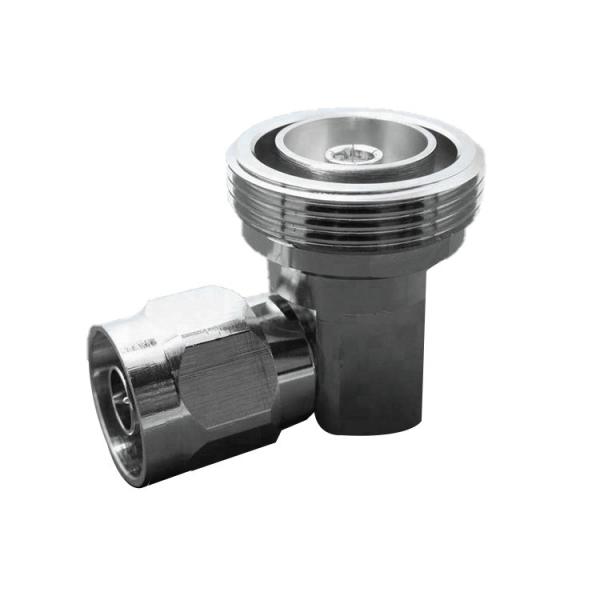

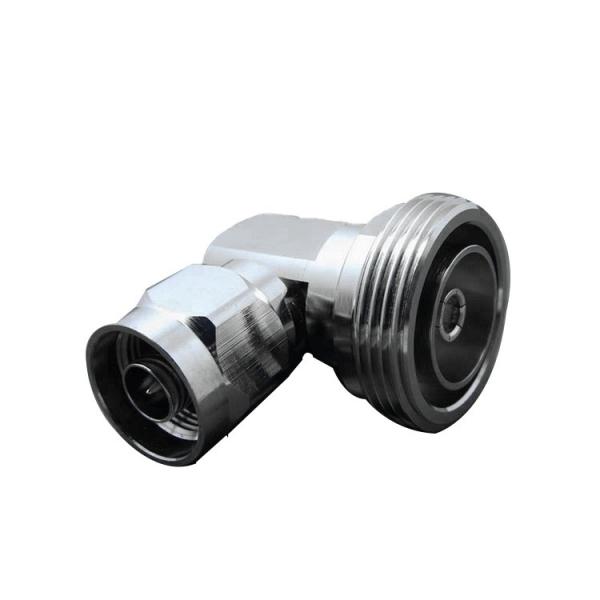

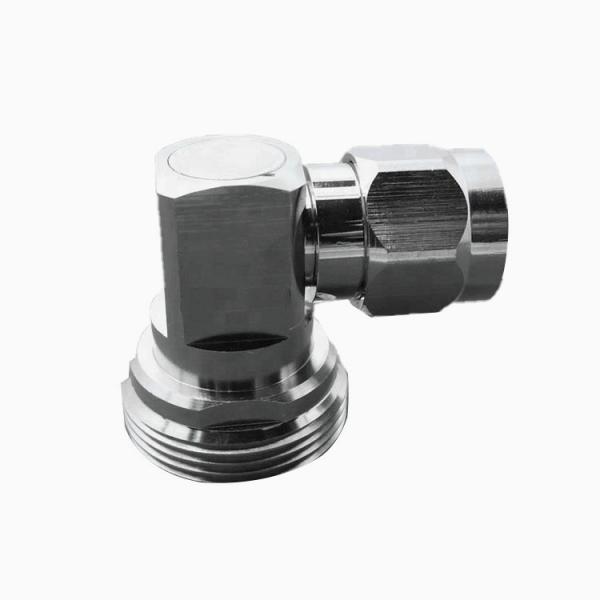

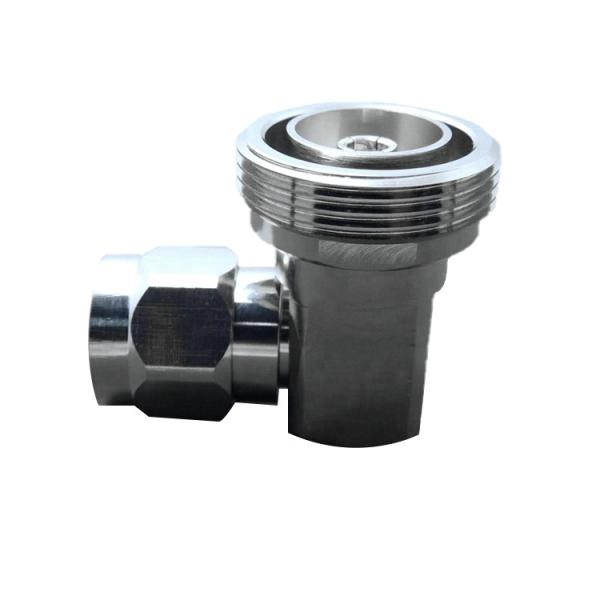

RF coaxial connector 7/16 DIN female to N male right angle adapter

The facts and figures contained herein are carefully complied to the best of our knowledge, but they are intended for general informational purposes only.

High Performance RF Coaxial Connector / Coax Cable Types Connectors

DIN female to N male righ angle rf adaptor
Center contact
Tin Bronze / Silver Plating
Body & Outer Conductor
Brass / Trimetal Plating
Dielectric
PTFE
Gasket
Silicon Rubber
Characteristics Impedance
50 Ohm
Frequency Range
DC~11GHz
Insulation Resistance
≥5000MΩ
Contact resistance
Type
N type male
DIN type female
Center contact
≤1.5mΩ
≤0.4mΩ
Outer contact
≤1.0mΩ
≤0.2mΩ
Dielectric Strength
2500V rms
Working voltage
1000V rms
Insertion Loss
@3 GHz
≤0.10dB
VSWR
≤1.10@DC~3.0GHz
Durability (matings)
≥500 cycles
Mechanical Shock Test Method
MIL-STD-202F, Method 107G, Test Condition B
Vibration Test Method
MIL-STD-202, Meth. 204, Cond. B
Temperature Range
-65~+165℃
RoHS
Compliant
