Mini DIN Male to Din female RF adapter Coaxial Connector Coaxial Cable Connector Adapter
Mini DIN Male to Din female RF adapter Coaxial Connector Coaxial Cable Connector Adapter
Specifications
Brand Name :
ZD
Model Number :
ZD-AD-MNDM-DF
Place of Origin :
China
MOQ :
10
Price :
USD0.8-2.0 PER PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per week
Delivery Time :
5-8 work days
Packaging Details :
cartons
VSWR :
≤1.10@DC-3000MHz
Impedance :
50ohm
Body :
Brass/Silver Plated
Dielectric Strength :
2500V rms
PIM :
≤-160DBC
Operating temperature ( ) :
-65~+165℃
Description

High quality 4.3-10 Mini DIN Male RF Coaxial Connector to din 7 16 Female coaxial adapter

The facts and figures contained herein are carefully complied to the best of our knowledge, but they are intended for general informational purposes only.

1. We focus on RF Connecter & RF Adapter &Cable Assembly &Antenna.

2. We have a vigorous and creative R&D team with the fullest mastery of the core technology.

We commit ourselves to the development of high performance connector production, and

dedicate ourselves to achieving a leading position in connector innovation and production.

3. Our custom RF cable assemblies are built-in and shipped worldwide

4. RF cable assemblies can be produced with many different connector types and custom lengths

Mini DIN 4.3/10 Straight Male Connector to DIN Female rf adaptor
Center contact
Tin Bronze / Silver Plating
Body & Outer Conductor
Brass / Trimetal Plating
Dielectric
PTFE
Gasket
Silicon Rubber
Characteristics Impedance
50 Ohm
Frequency Range
DC~11GHz
Insulation Resistance
≥5000MΩ
Contact resistance
Type
4.3-10 type male
DIN type female
Center contact
≤1.5mΩ
≤0.4mΩ
Outer contact
≤1.0mΩ
≤0.2mΩ
Dielectric Strength
2500V rms
Working voltage
1000V rms
Insertion Loss
@3 GHz
≤0.10dB
VSWR
≤1.10@DC~3.0GHz
Durability (matings)
≥500 cycles
Mechanical Shock Test Method
MIL-STD-202F, Method 107G, Test Condition B
Vibration Test Method
MIL-STD-202, Meth. 204, Cond. B
Temperature Range
-65~+165℃
RoHS
Compliant

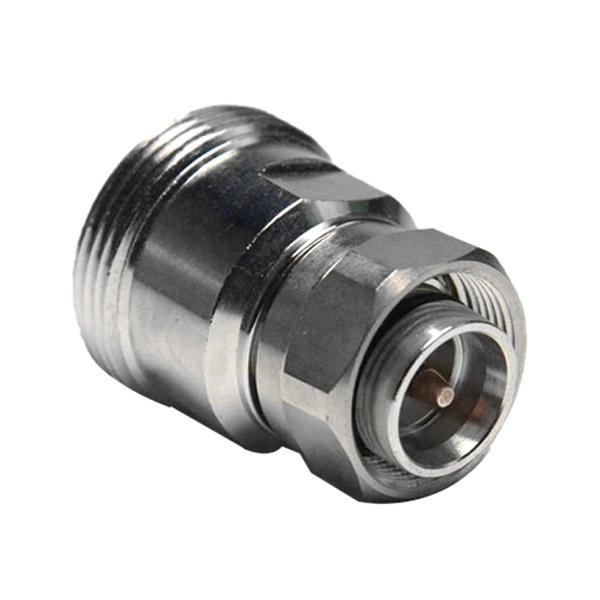

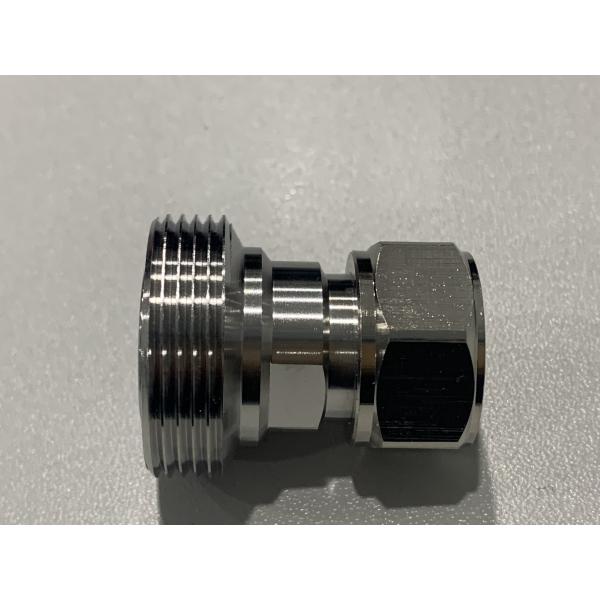

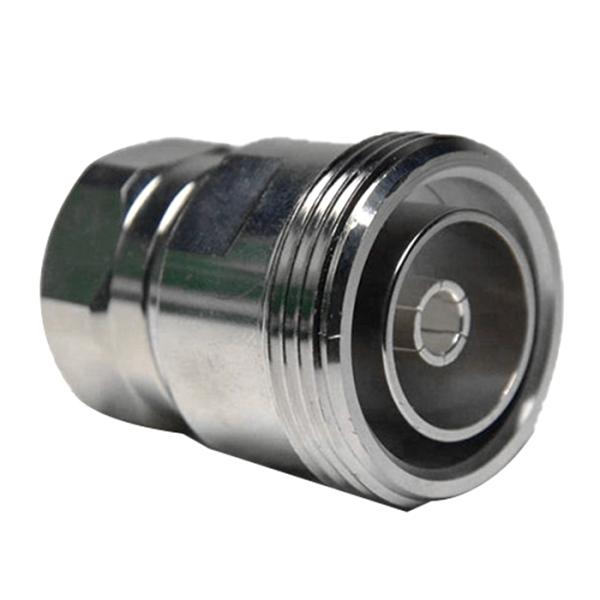

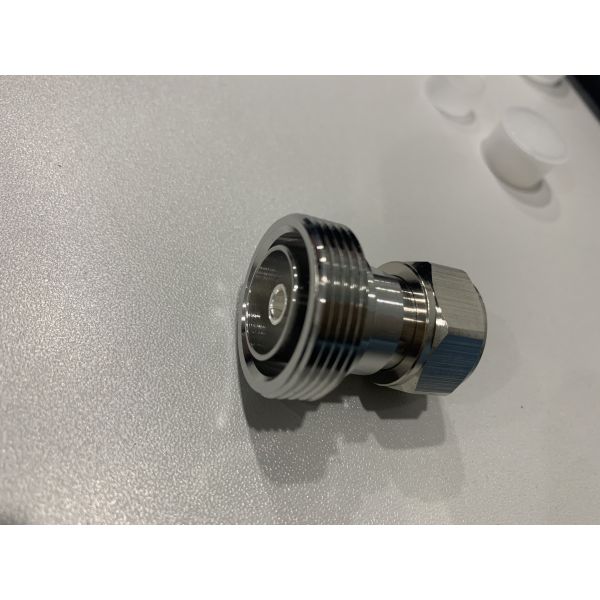

Mini DIN Male to Din female RF adapter Coaxial Connector Coaxial Cable Connector AdapterMini DIN Male to Din female RF adapter Coaxial Connector Coaxial Cable Connector AdapterMini DIN Male to Din female RF adapter Coaxial Connector Coaxial Cable Connector AdapterMini DIN Male to Din female RF adapter Coaxial Connector Coaxial Cable Connector Adapter
