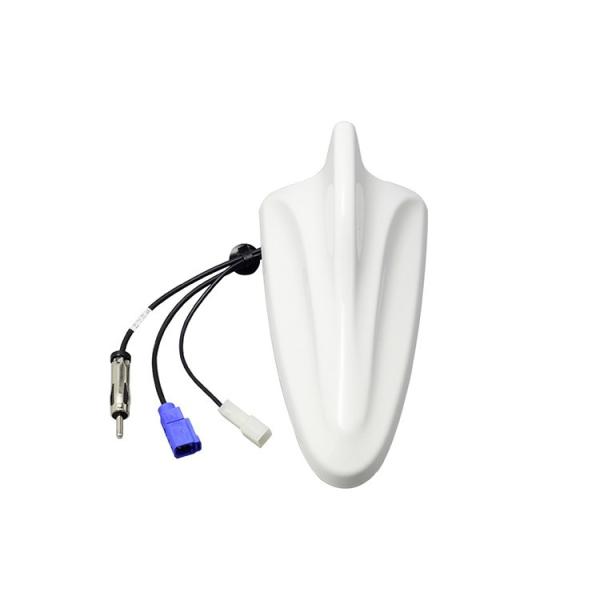

Telecommunications Parts High Power Vehicle Antenna Car Tv Gps Gsm Fm Am Shark Fin Wifi Antenna
Telecommunications Parts High Power Vehicle Antenna Car Tv Gps Gsm Fm Am Shark Fin Wifi Antenna
Telecommunications Parts High Power Vehicle Antenna Car Tv Gps Gsm Fm Am Shark Fin Wifi Antenna
Telecommunications Parts High Power Vehicle Antenna Car Tv Gps Gsm Fm Am Shark Fin Wifi Antenna
Telecommunications Parts High Power Vehicle Antenna Car Tv Gps Gsm Fm Am Shark Fin Wifi Antenna
Telecommunications Parts High Power Vehicle Antenna Car Tv Gps Gsm Fm Am Shark Fin Wifi Antenna
Specifications
Brand Name :
ZD
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Model Number :
ZD-SFA-RG174-W01-C03
Car Make: :
Universal
Gain(dB): :
28±3dB
Item Name: :
Shark Fin Car Antenna
Frequence Range: :
1575.42MHz
Working temperature: :
(-40~+90)℃
Cable Length: :
189mm
Description

high power vehicle antenna car tv gps gsm fm am shark fin wifi antenna

Telecommunications Parts High Power Vehicle Antenna Car Tv Gps Gsm Fm Am Shark Fin Wifi Antenna

Item Name Specification Item Name Specification
AM/FM Antenna Electrical Parameter GPS /Compass B1 Antenna Electrical Parameter

Frequency Range

AM 520~1710KHz

FM 88~108MHz

Frequency Range

GPS(1575.42±1.023)MHz

B1 (1559.098±2.046)MHz
Gain AM -4±5dB Gain 28±3dB
FM 14±4dB Polarization

RHCP
VSWR ≤4.5 VSWR ≤2
Noise Voltage AM ≤-6 dBμV Noise Factor ≤1.5dB
FM ≤0 dBμV Out of band attenuation ≥30dB @ fo±100MHz
Power DC +9~+16V Power

DC+3.3~+5V

Feed by coaxial line
Current 30~90mA(@+12V) Current ≤20mA(@+3.3V)
Input Connector ISO-J Input Connector FAKRA

Other Parameter
Dimensions of ANT (189×78×80)mm
Cable SYV75-2(AM/FM) RG174(GPS/ B1)
Working Temperature (-40~+85)℃
Storage Temperature (-40~+90)℃

A multifunction shark fin antenna series solution

The multi-function shark fin antenna, including the antenna outer cover, the antenna base, the internal function module, the signal cable and other main components, is designed to be the shape of shark fin by exposing the antenna outside the car, so that the antenna is matched with the line of the car body, and the shape is beautiful and shark is at the same time. The fin antenna has a large space, which can accommodate a variety of functions, such as AM/FM, GPS/BD/GNSS, CMMB, DVB, WIFI, 2G/3G/4G and other functional modules to simplify the car design and parts procurement system, at the same time, it also facilitates the function upgrade and platform design of the following car.
