Contact & Contactless Chip Card Reader With USB HID PCSC Interface
Contact & Contactless Chip Card Reader With USB HID PCSC Interface
Specifications
Brand Name :
PROVA
Model Number :
F3200
Certification :
Null
Place of Origin :
China
MOQ :
1 unit, sample accepted
Price :
USD25-USD30
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
3000+ Units / month
Delivery Time :
0-4 weeks according to quantities
Packaging Details :
50 units / Carton
Name :
Contact & Contactless Chip Card reader
Function :
Contact & Contactless Chip Card Read/Write
Interface :
USB HID (PCSC)
Color :
Black
IC card standard :
ISO7816
RFID card standard :
ISO14443-3
Description

Contact & Contactless Chip Card Reader With USB HID (PCSC) Interface

Product Name: Contact & Contactless Chip Card reader / PCSC IC Card Reader / Multi-functional Card Reader F3200

Model: F3200

Features:

* Read /Write RFID cards , IC card and Sam Card

* USB interface

* Support PCSC

* Long Life time (500,000 times)

Specification:

Power USB
Power Consumption Work current: Power Consumption Work current: <200 mA
Interface USB HID (PCSC)
Card Specification Width: 53.92～54.18 mm
Length: 85.47～85.90mm
Thickness: 0.76mm ± 0.08 mm
Net Weight Approx. 240g (Excluding accessory and package)
IC card standard ISO7816 standard certified, EMV2000 Level1, PBOC3.0 (WITH CERTIFICATE)
e.g.(AT24C01, 24C02, 24C256, SLE4447, SLE4428, CPU T=0/T=1)
RFID card standard ISO14443-3 compliant (TYPE A: e.g. S50,S70,UL etc )
ISO14443-4 compliant(TYPE A CPU, TYPE B CPU e.g. Mifare plus, MifareDesFire, etc)

Application Of Chip Card Reader

* Access control terminal

* Supermarket payment

* Food transport

* Communication and transportation

* Home-banking

* Retail POS/Banking

* Electronic Commerce

* Identification/Payment

* Anti-fake/Library management

Advantage Of Chip Card Reader

1. Support 2D/1D barcode and support screen and paper barcode

2. 1GHz 32 bits CPU,high speed for data processing.

3. Temperature resistance can reach 105℃,long service life.

4. Small size, powerful and easy to integrate in industrial equipment.

5. It supports 2nd development,multiple development language,also SDK.

6. Highly cost-effective,highly sales volume.

7. We can offer the FFC flat cable for free and 12pin connector if client needed.

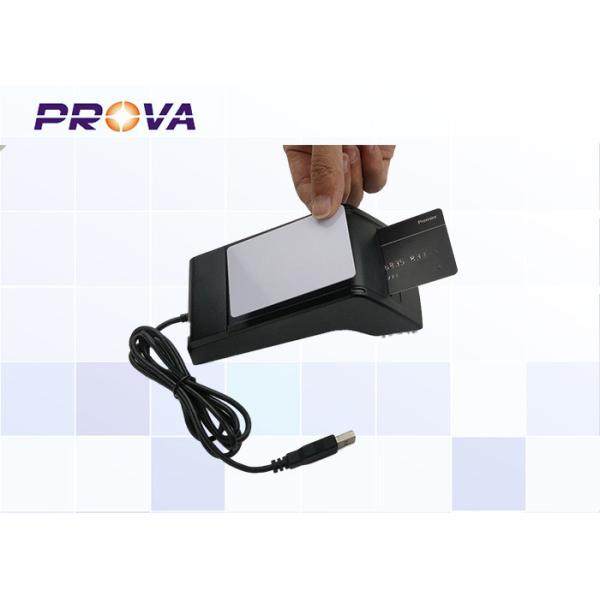

Working Status:

Contact & Contactless Chip Card Reader With USB HID PCSC Interface

Contact & Contactless Chip Card Reader With USB HID PCSC Interface

Contact & Contactless Chip Card Reader With USB HID PCSC InterfaceContact & Contactless Chip Card Reader With USB HID PCSC Interface
