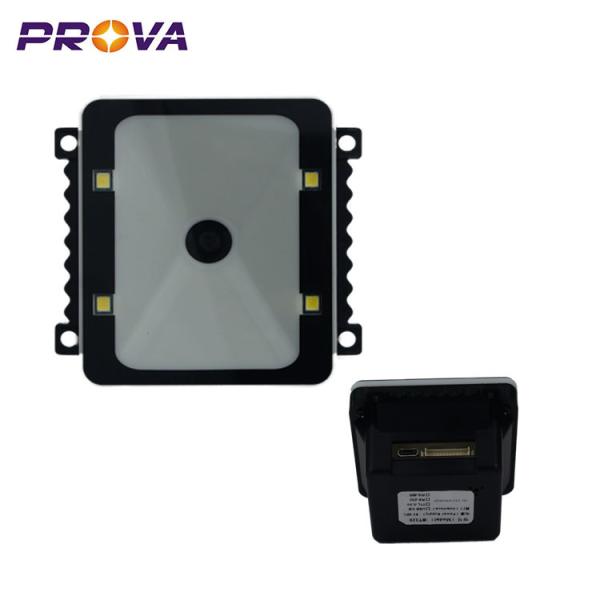

Name: Wide-angle two-dimensional 2D Barcode Scanning Module / Platform - BT320

Model: BT-320

Introduction:

The BT320 barcode scanning platform is a 1D barcode and 2D bard code reading product with super wide angle, high integration, fast response and high stability.

BT320 can read all kinds of mainstream 1D &2D barcodes.

BT320's field of view: diagonal 108 degrees

Ultra-thin and compact product structure, the total thickness of the product does not exceed 29mm, which can greatly adapt to the extreme requirements of the user.

This product can be applied to self-service equipment, payment, access control, and other fields.

Communication Interface:

BT320 device communication interface is: USB HID-KBW, TTL-232, RS232, RS485

1. USB HID-KBW: Based on USB keyboard emulation device, it can be directly connected to PC as a plug-and-play device. No driver is required.

2. TTL-232: The BT320 communicates with the host via a serial port (TTL level), which adapts to most system architectures.

3. RS232: The BT320 can communicate with the host interface via a cable (RS232 level signal).

4. RS485: BT320 can communicate with the host interface through the connection line (RS485 level signal).

Hardware flow control of the serial communication interface is not provided on the BT320.

The default configuration of the BT320's serial communication interface is 115200bps, 8-bit data bits, no parity, and 1 stop bit.

Interface Description:

The following figure shows the line sequence description and signal description of the BT320's 12-pin connector and Micro USB connector.

12-pin connector (1.25mm pitch):

Standard Micro USB connector:

Dimensional drawing:

Physical parameter:

Scan head volume (length x width x height): 64 mm × 65 mm × 29 mm

Weight: 41.4 g

Scanning performance:

Image sensor: 100W pixel CMOS

Scan recognition distance: 10-120 cm

Reading mode: hardware trigger / induction / continuous three modes

Reminder light: three-color status reminder light

Scan type: image type

Field of view angle: 36° horizontals, 23° vertical, 55° diagonal

Reading accuracy: 1D code ≥ 6mil QR code ≥ 15mil

(High-density barcode recognition has a short depth of field)

Decoding ability: Interpret standard one-dimensional, two-dimensional barcode

Electrical parameters:

Input voltage: 3.0- 3.6 VDC, 3.8- 1 6 VDC

Working current: 232 mA (peak)

Standby power: 25mA

Host system interface: USB, TTL-232, RS232, RS485

Environmental parameters:

Working temperature: -20 ° C ~ 70 ° C

Storage temperature: -40 ° C ~ 80 ° C

Humidity: 5%~95%, no condensation

Ambient illumination: 0~100,000
