Specifications
Brand Name :
OEM / Customize
Model Number :
F2600-IC
Certification :
ROHS
Place of Origin :
China
MOQ :
1 unit, sample avaliable
Price :
By inquiry
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000+ units / month
Delivery Time :
0-4 weeks according to quantities
Packaging Details :
15 units / Carton , Carton dimension 52x51x30cm @22.5kgs
Name :
Magnetic Card Reader / Encoder with Chip Card Module
Interface :
USB (Virtual COM Port)
Support Card :
Magnetic Card / Chip Card read / write
Color :
Gray white
Power supply :
External 24V/2.5A
Accessories :
USB Cable,Power Supply,Power Cable, Cleaning Card
Description

Product: track 1/2/3 magnetic stripe card reader writer with Chip Card Module - F2600-IC

Track 1/2/3 Magnetic Card Encoder Supports Multiple Operating SystemsTrack 1/2/3 Magnetic Card Encoder Supports Multiple Operating Systems

Model: F2600-IC

General Introduction:

F2600-IC is an ideal multifunctional reader designed for Banking System. It can encode and read data of stripe in the bank passbook and magnetic card. Obtaining read/write parity functions together. According to user requirement the device can integrate with IC card and SAM card module.

Specification:

●Voltage: +9V/DC±10% or +5V/DC±10%

●Current :≤300mA

●Sweep speed:10 ~ 100cm/s

●Head life:500,000 times

●IC card slot life(Main):200,000 times

●IC card slot life(Sub):100,000 times

●SAM card slot life:5,000 times

●Encoding standard:According to IBM,ISO,ANSI

●Encoding density:

Track1: 210BPI

Track2: 75BPI / 210BPI at optional

Track3: 210BPI

●Encoding characters:

Track 1: 210BPI Max length 76 bytes

Track 2: 75BPI Max length 37 bytes / 210BPI Max Length 104 bytes

Track 3: 210BPI Max length 104 bytes

●Environmental Requirement: Temp. 0℃～45℃, Humidity 10～90％RH

●Dimension(L*W*H, mm):215*64*65

●IC card module according to ISO7811/7816 Standard, Chinese financial IC card criterion (PBOC2.0) and EMV Standard

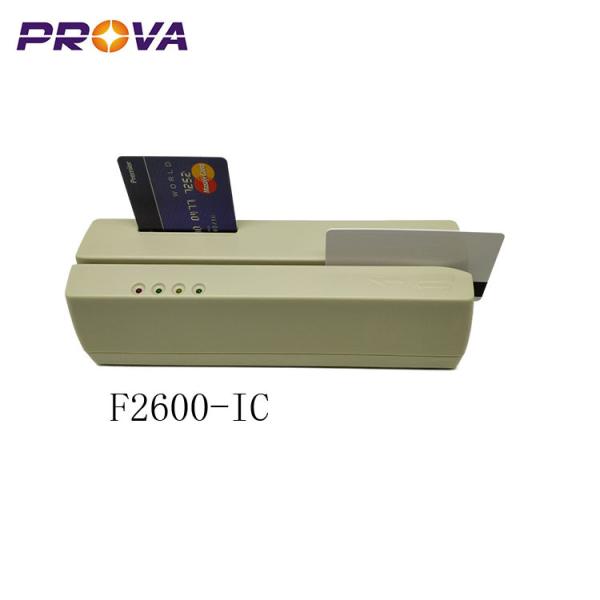

Appearance

Track 1/2/3 Magnetic Card Encoder Supports Multiple Operating Systems

A . MSRE slot B. Main IC card slot C. Sub IC card slot

Framework of Working Principle

Track 1/2/3 Magnetic Card Encoder Supports Multiple Operating Systems
