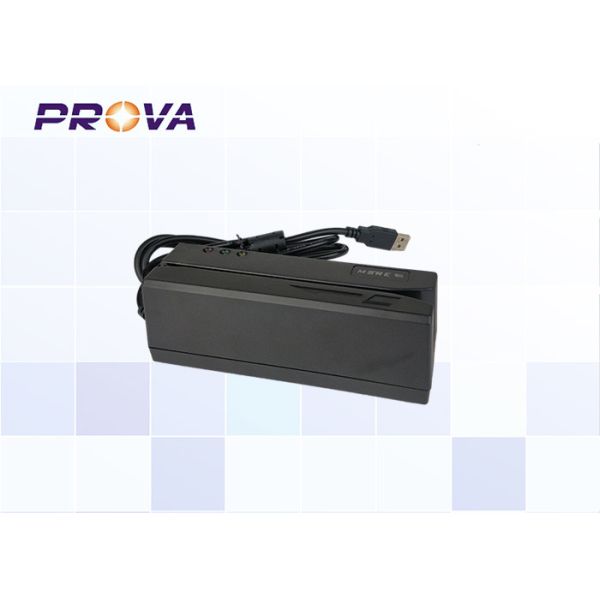

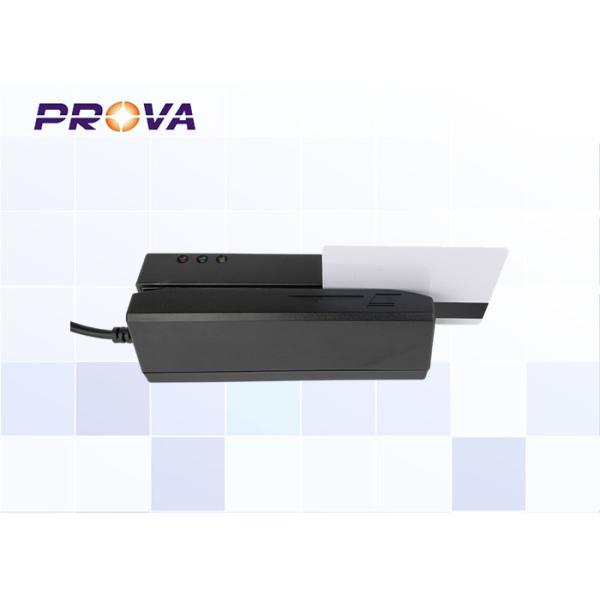

Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability
Specifications
Brand Name :
OEM / Customize
Model Number :
M9
Certification :
ROHS
Place of Origin :
China
MOQ :
1 unit, sample avaliable
Price :
By inquiry
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000+ units / month
Delivery Time :
0-4 weeks according to quantities
Packaging Details :
20 units / Carton
Name :
Bluetooth & USB Magnetic Stripe Card Reader & Encoder
Interface :
Bluetooth / USB (HID)
Support Card :
Magnetic Stripe Card / Passbook Read & Write
Color :
Black
Power supply :
Internal Li-ion Battery
Support OS :
Windows / Android
Description

Product: Bluetooth & USB Magnetic Stripe Card Reader & Encoder / Magnetic Stripe Card Reader & Writer

Bluetooth & USB Magnetic Stripe Card Reader Writer Encoder High StabilityBluetooth & USB Magnetic Stripe Card Reader Writer Encoder High Stability

Model: M9

1. Introduction

M9 is an intelligent, programmable magnetic card read and write device. It is widely used in the banking system, fiscal system, safety management system, member management system and related applications.

2. Features

  • Compatibility:100% compatible with MSR206/MSR606/MSR609 command system.
  • Read-write functions: For Hi-Co&Lo-Co magnetic stripe (300-4000oe) all three tracks to read and write function.
  • Read/write format: Support ISO7811-6, AAMVA, DMV Standards
  • Blind read function : Reading card/Notebook which can realize the different standard of the blind to read.
  • Stability : The device is stable and reliable, error rate < 0.5
  • Working life: Minimum 500,000 times life of read/write heads
  • Systems:Supports Windows XP/VISTA/Win7/win8/win10, to provide convenient DLL secondary development
  • Power Option: Read / Write by Internal Battery(Bluetooth connection)

3. Technical Specification

Electrical
Power supply 5V USB / Internal Li-ion Battery
Consumption Read 50mA±15%
Write 2800mA±15%
Communication USB HID / Bluetooth ,
Mechanical
Model M9
Housing material ABS 94V
Size 150mm(L)X50mm(W)X53mm(H)
Weight 950g
Color Black
Environment
Operation temperature -10℃ ~ 55 ℃
Operating humidity 10%~85% relative humidity
Storage temperature -30℃~70℃
Store humidity 10%~90% relative humidity
Performance
Track 1/2/3 tracks
Recording density 1,3 track 210BPI
2 track 75/210BPI optional
Coercive force Read/Write 300-4000 oe Magnetic card

Operating speed

 Read speed 6.3~250cm/s
Write speed 10~100cm/s
Card thickness PVC 0.76±0.08mm
Error rate Read < 0.5%,Writer < 0.8%
Head life Minimum 500,000 times
