Specifications
Brand Name :
OEM / Customize
Model Number :
MSRC605
Certification :
ROHS
Place of Origin :
China
MOQ :
1 unit, sample avaliable
Price :
By inquiry
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000+ units / month
Delivery Time :
0-4 weeks according to quantities
Packaging Details :
20 units / Carton
Name :
Magnetic Stripe Card Reader & Encoder / Magnetic Stripe Card Reader & Writer
Interface :
USB (HID)
Support Card :
Magnetic Stripe Card / Passbook Read & Write
Color :
Black
Power supply :
External 24V/2.5A
Description

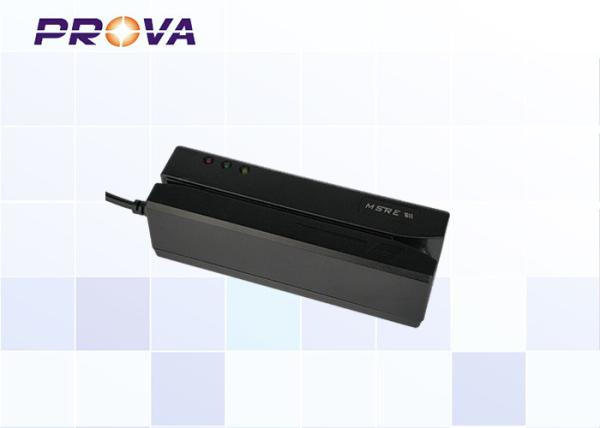

Product: USB Magnetic Stripe Card Reader & Encoder / Magnetic Stripe Card Reader & Writer - MSRC605

1/2/3 Tracks Magnetic Card Encoder With 500,000 Times Long Working Life1/2/3 Tracks Magnetic Card Encoder With 500,000 Times Long Working Life

Model: MSRC605

1. Introduction

MSRC605 is an intelligent, programmable magnetic card read and write device. It is widely used in the banking system, fiscal system, safety management system, member management system and related applications.

2. Features

  • Compatibility:100% compatible with MSR206/MSR606/MSR609 command system.
  • Read-write functions: For Hi-Co&Lo-Co magnetic stripe (300-4000oe) all three tracks to read and write function.
  • Read/write format: Support ISO7811-6, AAMVA, DMV Standards
  • Blind read function : Reading card/Notebook which can realize the different standard of the blind to read.
  • Stability : The device is stable and reliable, error rate < 0.5
  • Working life: Minimum 500,000 times life of read/write heads
  • Systems:Supports Windows XP/VISTA/Win7/win8/win10, to provide convenient DLL secondary development
  • Power Option: By 24V/2.5A External power supply.

3. Technical Specification

Electrical
Power supply 24V/2.5A external power supply
Consumption Read 50mA±15%
Write 2800mA±15%
Communication USB HID
Mechanical
Model MSRC605
Housing material ABS 94V
Size 150mm(L)X50mm(W)X53mm(H)
Weight 950g
Color Black
Environment
Operation temperature -10℃ ~ 55 ℃
Operating humidity 10%~85% relative humidity
Storage temperature -30℃~70℃
Store humidity 10%~90% relative humidity
Performance
Track 1/2/3 tracks
Recording density 1,3 track 210BPI
2 track 75/210BPI optional
Coercive force Read/Write 300-4000 oe Magnetic card

Operating speed

 Read speed 6.3~250cm/s
Write speed 10~100cm/s
Card thickness PVC 0.76±0.08mm
Error rate Read < 0.5%,Writer < 0.8%
Head life Minimum 500,000 times
