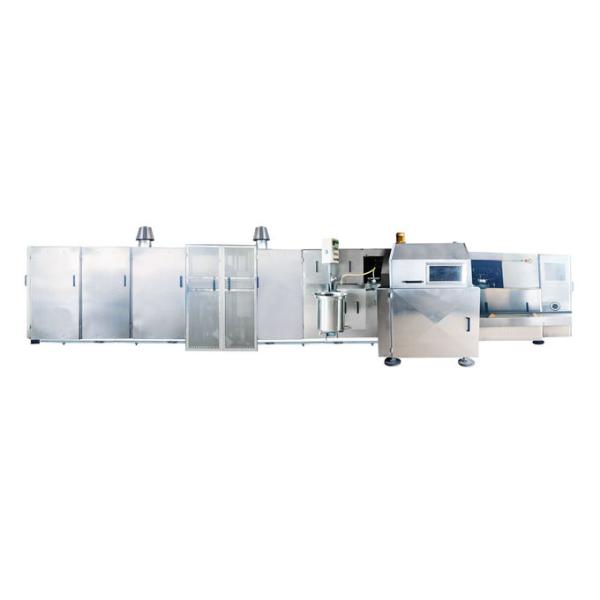

Stainless Steel Industrial Automatic Rolled Sugar Cone Machine
Stainless Steel Industrial Automatic Rolled Sugar Cone Machine
Stainless Steel Industrial Automatic Rolled Sugar Cone Machine
Stainless Steel Industrial Automatic Rolled Sugar Cone Machine
Specifications
Brand Name :
OEM
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1PS
Price :
Negotiation
Payment Terms :
T/T, L/C, T/T, Western Union
Supply Ability :
Sufficient Supply
Delivery Time :
30-45 days
Packaging Details :
RAW PACK
Name :
Automatic Automatic Sugar Cone Production Line
Material :
Food Grade Stainless Steel
Voltage :
380V
Dimension(L*W*H) :
9000*1900*1850 mm
Function :
Multifunctional
Raw material :
Wheat Flour
Weight :
5300kgs
Type :
Fully Automatic
Capacity :
5500-6000pcs/h
Application :
Food & Beverage Factory
Description

Stainless Steel Industrial Automatic Rolled Sugar Cone Machine


Introduction

1. We produce many kinds of Automatic Rolled Sugar Cone Machine ,such as semi-automatic cone machine,automatic cone machines and ice cream cone production line.

2. The machine is driven by the 3phase power and baking oven is heating with gas(natural gas or liquid gas).The producing ability is very high and it is all automatic from spraying the batter,baking,forming,falling off from molds,conveying products,stacking and counting.


Features


1. The machine is suitable for making flat mouth sugar cone length less than 120mm. Cone degree, weight, thickness and pattern spacing customized according to customer demand.

2. The machine is consist of 280*240mm baking plates, plates material is high-qualified ductile cast iron, each plates can make two cone sheets.

3. The machine is driven by the 3 phases power and backing oven is heating with gas (natural gas or liquid gas), electric ignition, oven temperature electronic display. The producing ability is very high and it is all automatic from spraying the batter, baking, forming, falling off from molds, conveying products, stacking and counting.

Model GG37×2-16A GG45×2-16A GG53×2-16A
Drive motor 380V 1.5KW 380V 1.5KW 380V 2.2KW
Rolling system motor 380V 0.37KW 380V 0.37KW 380V 0.37KW
Air blower 380V 1.1KW 380V 1.1KW 380V 1.6KW
Gas consumption(kg/h) 5-7 6-7 8-12
Producing capacity(pcs/h) 3500-4000 4500-5000 5500-6000
Food-grade conveyor 5000*460*500 5000*460*500 5000*460*500
Automatic counter 3000*460*400 3000*460*400 3000*460*400
Mixer 190L 190L 190L
Machine measurement (m) 7.05×1.90×1.73 8.52×1.90×1.73 9.80×1.90×1.73
Total weight 4200kgs 4800kgs 5300kgs

Stainless Steel Industrial Automatic Rolled Sugar Cone Machine
