MURS260T3G Power Management IC Surface Mount Ultrafast Power Rectifiers
MURS260T3G Power Management IC Surface Mount Ultrafast Power Rectifiers
MURS260T3G Power Management IC Surface Mount Ultrafast Power Rectifiers
MURS260T3G Power Management IC Surface Mount Ultrafast Power Rectifiers
Specifications
Brand Name :
ON
Model Number :
MURS260T3G
Place of Origin :
CHINA
MOQ :
10 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union ， ESCROW
Supply Ability :
100000PCS
Delivery Time :
STOCK
Packaging Details :

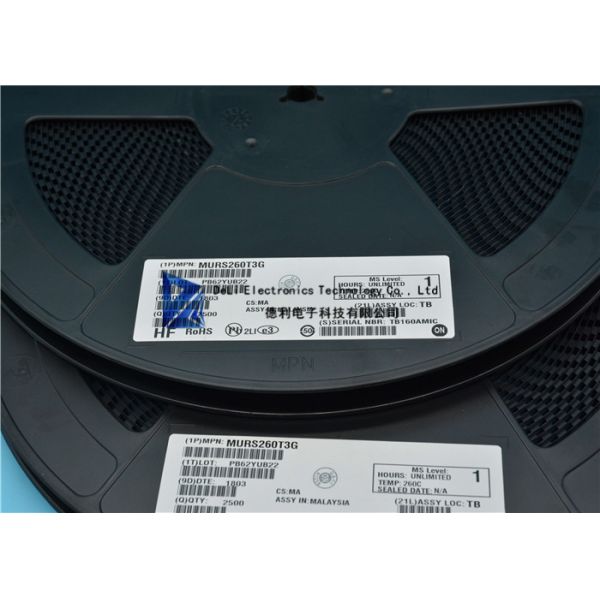

2500PCS/REEL
Voltage - DC Reverse (Vr) (Max) :
600V
Current - Average Rectified (Io) :
2A
Voltage - Forward (Vf) (Max) @ If :
1.45V @ 2A
Speed :
Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) :
75ns
Current - Reverse Leakage @ Vr :
5µA @ 600V
Package / Case :
DO-214AA, SMB
Operating Temperature - Junction :
-65°C ~ 175°C
Description

MURS260T3G Power Management IC Surface Mount Ultrafast Power Rectifiers

Surface Mount Ultrafast Power Rectifiers

Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system.

Features

• Pb−Free Package is Available

• Small Compact Surface Mountable Package with J−Bend Leads

• Rectangular Package for Automated Handling

• High Temperature Glass Passivated Junction

• Low Forward Voltage Drop (1.20 Volts Max @ 2.0 A, TJ = 150°C)

Mechanical Characteristics

• Case: Epoxy, Molded

• Weight: 95 mg (approximately)

• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

• Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds

• Polarity: Polarity Band Indicates Cathode Lead

Product Attributes Select All
Manufacturer ON Semiconductor
Series -
Part Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 1.45V @ 2A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 75ns
Current - Reverse Leakage @ Vr 5µA @ 600V
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB
Operating Temperature - Junction -65°C ~ 175°C
