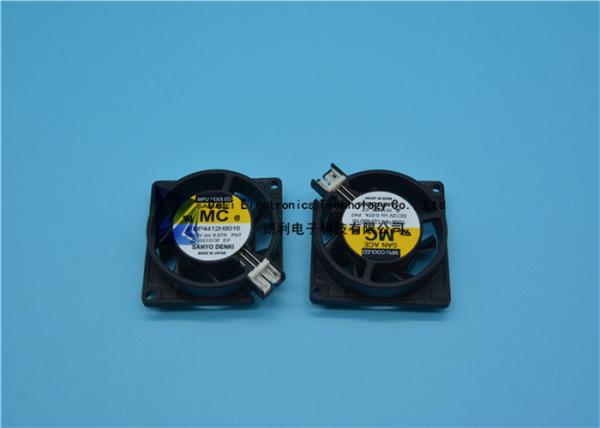

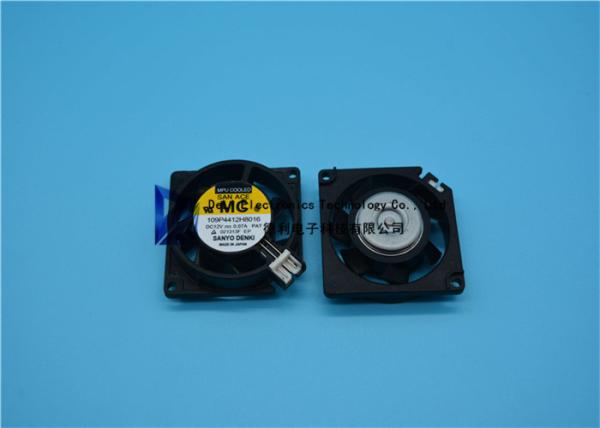

109P4412H8016 Printed Circuit Board Blowers Fan 12V DC 0.07A Lock 35.0 DB
109P4412H8016 Printed Circuit Board Blowers Fan 12V DC 0.07A Lock 35.0 DB
109P4412H8016 Printed Circuit Board Blowers Fan 12V DC 0.07A Lock 35.0 DB
109P4412H8016 Printed Circuit Board Blowers Fan 12V DC 0.07A Lock 35.0 DB
Specifications
Brand Name :
Sanyo Denki
Model Number :
109P4412H8016
Place of Origin :
JAPAN
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
10000
Delivery Time :
3-5days
Packaging Details :
BOX
Categories :
DC Fans
Series :
San Ace
Voltage - Rated :
12V
Current Rating :
0.07A
Voltage Range :
12 ~ 27.6VDC
Noise :
35.0 dB(A)
Description

109P4412H8016 PCB Connector Blowers FAN 12VDC 0.07A LOCK

General Specifications

・ Material ………………………………………… Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)

・ Expected life …………………………………… See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage)

・ Motor protection function ………………… Locked rotor burnout protection, Reverse polarity protection For details, please refer to p. 529.

・ Dielectric strength …………………………… 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)

・ Insulation resistance ………………………… 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)

・ Sound pressure level (SPL) ……………… At 1 m away from the air inlet

・ Storage temperature ……………………… -30 to +70˚C (Non-condensing)

・ Lead wire ……………………………………… Red Black or Blue Sensor Yellow

・ Mass ……………………………………………… 45 g

Product Attributes Select All
Categories Fans, Thermal Management
　 DC Fans
Manufacturer Sanyo Denki America Inc.
Series San Ace 40
Part Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 40mm L x 40mm H
Width 20.00mm
Air Flow 8.2 CFM (0.230m³/min)
Static Pressure 0.280 in H2O (69.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Sensor
Noise 35.0 dB(A)
Power (Watts) 1.68W
RPM 8300 RPM
Termination 3 Wire Leads
Operating Temperature -4 ~ 158°F (-20 ~ 70°C)
Approvals CSA, TUV, UL
Weight 0.099 lb (44.91g)
Current Rating 0.070A
Voltage Range 12 ~ 27.6VDC

Description:
Muti-Port RJ45 side entry Network Jack with shield
Number of ports: 1*1
Number of position: 8
Number of contacts: 2,4,6 or 8

Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min

Mechanical:

Insertion force: 2.2kgf max

Retention strength: 7.7kgf min between jack and plug

Durability: 600 mating cycles minimum

Materials:

Housing: ABS resin (UL94V-0), PBT (UL94V-0),

PA66 (UL94V-0), and PA46 (UL94V-0)

2. Contact Wire: Diameter 0.45mm

phosphor bronze gold plating over Nickel

3. Shield: 0.20~0.25mm thickness brass with tin plated

4. Gold Plating: Fu",+3u",6u",15u",30u",50u"
