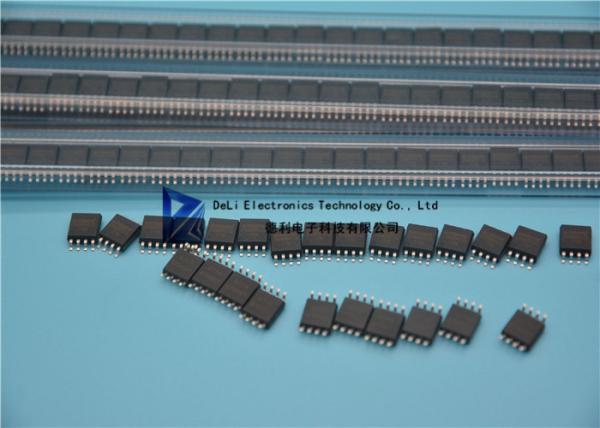

W25Q80DVSNIG Serial Flash Chip 3V 8M BIT Dual Quad Spi Memory Integrated Circuit
W25Q80DVSNIG Serial Flash Chip 3V 8M BIT Dual Quad Spi Memory Integrated Circuit
W25Q80DVSNIG Serial Flash Chip 3V 8M BIT Dual Quad Spi Memory Integrated Circuit
W25Q80DVSNIG Serial Flash Chip 3V 8M BIT Dual Quad Spi Memory Integrated Circuit
Specifications
Brand Name :
WINBOND
Model Number :
W25Q80DVSSIG
Place of Origin :
TAIWAN
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
50000PCS
Delivery Time :
in stock 2-3days
Packaging Details :
TUBE
Certification :
CE/ RoHS
Series :
SpiFlash®
Memory Type :
Non-Volatile
Memory Format :
FLASH
Memory Size :
8Mb (1M x 8)
Clock Frequency :
104MHz
Write Cycle Time - Word, Page :
3ms
Voltage - Supply :
2.7 V ~ 3.6 V
Operating Temperature :
-40°C ~ 85°C (TA)
Description

W25Q80DVSSIG IC Memory Chip 3V 8M-BIT SERIAL FLASH MEMORY WITH DUAL AND QUAD SPI


FEATURES

Family of SpiFlash Memories

– W25Q80DV: 8M-bit/1M-byte (1,048,576) –
256-byte per programmable page
– Standard SPI: CLK,/CS,DI,DO,/WP,/Hold
– Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
– Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
– Uniform 4KB Sectors, 32KB & 64KB Blocks
Highest Performance Serial Flash

– 104MHz Dual/Quad SPI clocks
– 208/416MHz equivalent Dual/Quad SPI
– 50MB/S continuous data transfer rate

Software and Hardware Write Protection

– Write-Protect all or portion of memory
– Enable/Disable protection with /WP pin
– Top or bottom array protection
Flexible Architecture with 4KB sectors

– Uniform Sector/Block Erase (4/32/64-kbytes)
– Program one to 256 bytes < 0.8ms
– Erase/Program Suspend & Resume
– More than 100,000 erase/write cycles
– More than 20-year data retention 

Low Power, Wide Temperature Range

– Single 2.7 to 3.6V supply
– <1µA Power-down(typ.) 

Space Efficient Packaging(1):

– 8-pin SOIC 150-mil/208mil, VSOP 150-mil
– 8-pad WSON 6x5-mm, USON 2x3-mm
– 8-pin PDIP 300-mil – 8-ball WLCSP
– Contact Winbond for KGD and other options Note 1.
Some package types are special orders, please contact Winbond for ordering information.


Product Attributes Select All
Manufacturer Winbond Electronics
Series SpiFlash®
Packaging Tube
Part Status Active
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 8Mb (1M x 8)
Clock Frequency 104MHz
Write Cycle Time - Word, Page 3ms
Memory Interface SPI
Voltage - Supply 2.7 V ~ 3.6 V
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.209", 5.30mm Width)
Supplier Device Package 8-SOIC
