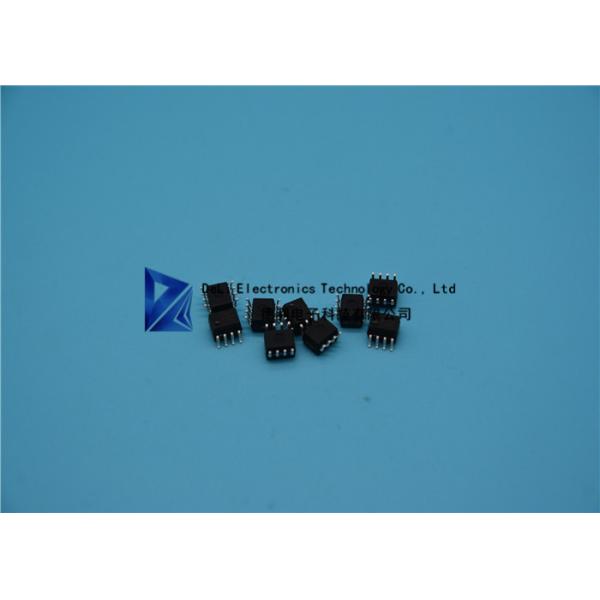

ACPL-072L-000E Logic Output Optoisolator 25MBd Push-Pull Totem Pole 3750Vrms 1 Channel 10kV/µs CMTI 8-SO

3.3V/5V High Speed CMOS Optocoupler


Description
Available in either an 8-pin DIP or SO-8 style respectively,
the ACPL-772L or ACPL-072L optocouplers utilize the
latest CMOS IC technology to achieve outstanding speed
performance of minimum 25MBd data rate and 6ns
maximum pulse width distortion.
Basic building blocks of this family of products are a
CMOS LED driver IC, a high speed LED and a CMOS
detector IC. A CMOS logic input signal controls the LED
driver IC, which supplies current to the LED. The detector
IC incorporates an integrated photodiode, a high speed
transimpedance amplifier, and a voltage comparator with
an output driver.


Features
• Dual voltage operation (3.3V and 5V)
• Allow level shifting functionality
• Support high Speed datarate of 25 MBd
• Wide Temperature operation
• CMOS output and buffer input
• Compatible with CMOS and TTL logic level
• Lower power consumption with 3.3V supply
• Good AC performance with lower pulse width distortion
• Lead-free option available

Specifications
• 3.3V and 5V CMOS Compatibility
• High Speed: DC to 25 MBd
• 6ns max. Pulse Width Distortion
• 40 ns max. Prop. Delay
• 20 ns max. Prop. Delay Skew
• 10 kV/ms min. Common Mode Rejection
• -40 °C to 105 °C Temperature Range
• Safety and Regulatory Approvals: UL Recognised
- 5000Vrms for 1 min. per UL1577 for ACPL-772L for option 020
- 3750Vrms for 1 min. per UL1577 for ACPL-072L CSA Component Acceptance Notice #5 IEC/EN/DIN EN 60747-5-2
– VIORM = 630 Vpeak for ACPL-772L Option 060
– VIORM = 560 Vpeak for ACPL-072L Option 060

Applications
• Digital Fieldbus Isolation: DeviceNet, Profibus, SDS
• Multiplexed Data Transmission
• General Instrument and Data Acquisition
• Computer Peripheral interface
• Microprocessor System Interface
