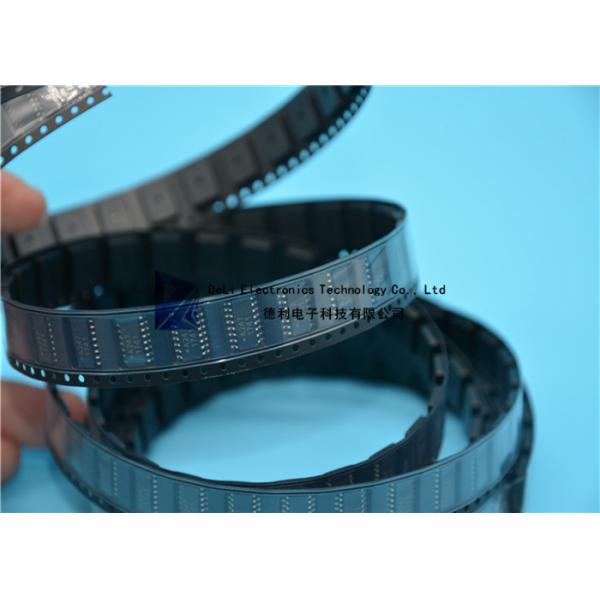

ACPL 247 Integrated Circuit Chip Output 3000Vrms 4 Channel Optoisolator Transistor
ACPL 247 Integrated Circuit Chip Output 3000Vrms 4 Channel Optoisolator Transistor
ACPL 247 Integrated Circuit Chip Output 3000Vrms 4 Channel Optoisolator Transistor
ACPL 247 Integrated Circuit Chip Output 3000Vrms 4 Channel Optoisolator Transistor
ACPL 247 Integrated Circuit Chip Output 3000Vrms 4 Channel Optoisolator Transistor
ACPL 247 Integrated Circuit Chip Output 3000Vrms 4 Channel Optoisolator Transistor
Specifications
Brand Name :
AVAGO
Model Number :
ACPL-247
Place of Origin :
Malaysia
MOQ :
10 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
10000PCS
Packaging Details :
REEL
Certification :
CE/ RoHS
Delivery Time :
in stock 2-3days
Categories :
Optoisolators - Transistor, Photovoltaic Output
Number of Channels :
4
Voltage - Isolation :
3000Vrms
Current Transfer Ratio (Min) :
100% @ 5mA
Current Transfer Ratio (Max) :
600% @ 5mA
Turn On / Turn Off Time (Typ) :
3µs, 3µs
Voltage - Output (Max) :
80V
Current - Output / Channel :
50MA
Description

ACPL-247 Optoisolator Transistor Output 3000Vrms 4 Channel 16-SO

DC Input, Multi-Channel Half-Pitch Phototransistor Optocoupler

Description
The ACPL-227 is a DC-input dual-channel half-pitch
phototransistor optocoupler that contains two light-emitting
diodes optically coupled to two separate phototransistors. It is
packaged in an 8-pin SO package.
Likewise, the ACPL-247 is a DC-input quad-channel half-pitch
phototransistor optocoupler that contains four light-emitting
diodes optically coupled to four separate phototransistors. It is
packaged in a 16-pin SO package.
For both devices, the input-output isolation voltage is rated at
3750VRMS. Response time, tr, is 2 μs typically, while minimum
CTR is 50 percent at input current of 5 mA.

Features


Current transfer ratio
(CTR: 50% (min) at IF = 5 mA, VCE = 5V)
High input-output isolation voltage
(VISO = 3750VRMS)
Non-saturated response time
(tr: 2 μs (typ) at VCC = 10V, IC = 2 mA, RL= 100)
SO package
CMR 10 kV/μs (typical)
Safety and regulatory approvals
— cUL
— IEC/EN/DIN EN 60747-5-5
Options available:
— CTR Ranks 0, B, and C for ACPL-227 and Rank 0 only for
ACPL-247


Applications
I/O Interface for programmable controllers, computers
Sequence controllers
System appliances, measuring instruments
Signal transmission between circuits of different potentials
and impedances

Product Attributes Select All
Categories Isolators
　 Optoisolators - Transistor, Photovoltaic Output
Manufacturer Broadcom Limited
Series -
Packaging Tape & Reel (TR)
Part Status Active
Number of Channels 4
Voltage - Isolation 3000Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Turn On / Turn Off Time (Typ) 3µs, 3µs
Rise / Fall Time (Typ) 2µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50mA
Vce Saturation (Max) 400mV
Operating Temperature -55°C ~ 110°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.173", 4.40mm Width)
