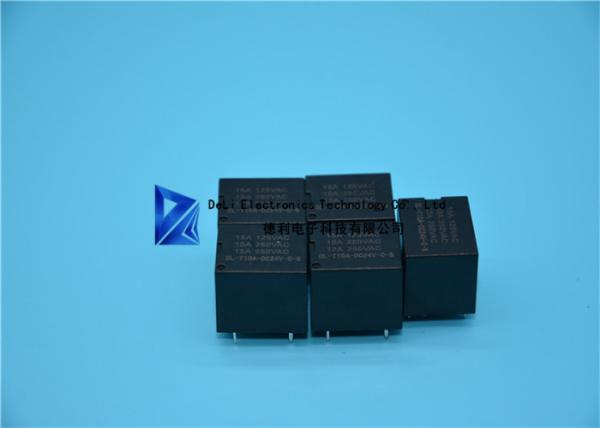

Silver Alloy Low Signal Relays T73 10A 1600Ω Coil Resistance ELV Directive DL-T10A-24V
Silver Alloy Low Signal Relays T73 10A 1600Ω Coil Resistance ELV Directive DL-T10A-24V
Silver Alloy Low Signal Relays T73 10A 1600Ω Coil Resistance ELV Directive DL-T10A-24V
Silver Alloy Low Signal Relays T73 10A 1600Ω Coil Resistance ELV Directive DL-T10A-24V
Silver Alloy Low Signal Relays T73 10A 1600Ω Coil Resistance ELV Directive DL-T10A-24V
Silver Alloy Low Signal Relays T73 10A 1600Ω Coil Resistance ELV Directive DL-T10A-24V
Specifications
Brand Name :
DELI
Model Number :
DL-T10A-24V
Place of Origin :
CHINA
MOQ :
10 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union ， ESCROW
Supply Ability :
10000PCS
Delivery Time :
STOCK
Packaging Details :
TUBE
Nominal Voltage :
24V
Coil Resistance :
1600Ω
Rated Current :
15MA
Max Operate Voltage :
18V
Min Release Voltage :
1.2V
Contact Form :
1A/1C
Minimum load :
100mA 5VDC
Max Switching Voltage :
250VAC/30VDC
Description

DL-T10A-24V Low Signal Relays T73 Relay 10A 24V switching capability

● 10A switching capability
● Small footprint
● Sealed type available
● Class B/F available
● Conform to RoHS,ELV directive

■COIL DATA (at 20℃)
Nominal Voltage (VDC) 3 5 6 9 12 18 24 48
Coil Resistance (Ω±10%) 25 69 100 225 400 900 1600 6400
Rated Current (mA) 120 71.4 60 40 30 20 15 7.5
Max Operate Voltage (VDC) 2.25 3.75 4.5 6.75 9 13.5 18 36
Min Release Voltage (VDC) 0.15 0.25 0.3 0.45 0.6 0.9 1.2 2.4
Max ApplicableVoltage 70℃ 130%, 23℃ 170%

■CONTACT DATA
Contact Form: 1A/1C
Contact Material: Silver Alloy
Load :Resistive load(COSФ=1)
Contact Ratings:1A:10A 240VAC 1C: 7A 240VAC 12A 120VAC 10A 120VAC
Minimum load:100mA 5VDC
Max Switching Voltage:250VAC/30VDC
Max Switching Current:15A
Max Switching Power :2770VA/240W
Contact Resistance:100mΩMax at 6VDC 1A
Life Expectancy
Electrical : 100,000 Operations(at30Operations/minute)
Mechanical : 10,000,000 Operations(at300Operations/minute)
