FMMT734TA Darlington NPN PNP Transistors 140MHz 625mW Surface Mount SOT 23 3
FMMT734TA Darlington NPN PNP Transistors 140MHz 625mW Surface Mount SOT 23 3
FMMT734TA Darlington NPN PNP Transistors 140MHz 625mW Surface Mount SOT 23 3
FMMT734TA Darlington NPN PNP Transistors 140MHz 625mW Surface Mount SOT 23 3
Specifications
Brand Name :
ZETEX
Model Number :
FMMT734TA
Place of Origin :
CHINA
MOQ :
3000 PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union ， ESCROW
Supply Ability :
30000PCS
Delivery Time :
STOCK
Packaging Details :

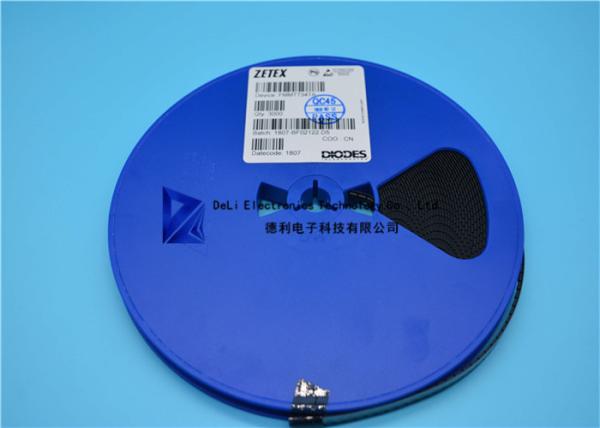

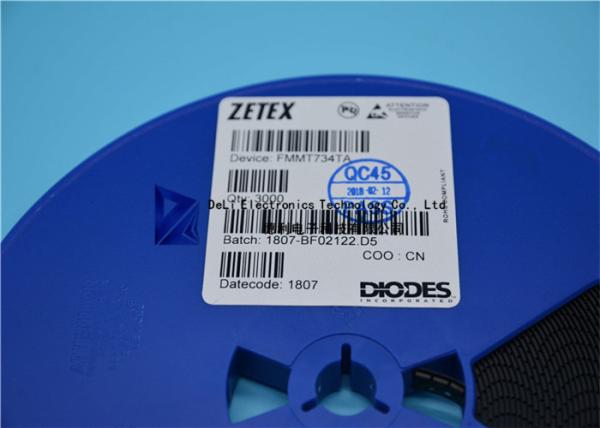

3000PCS/REEL
Categories :
Transistors - Bipolar (BJT) - Single
Current - Collector (Ic) (Max) :
800mA
Voltage - Collector Emitter Breakdown (Max) :
100V
Vce Saturation (Max) @ Ib, Ic :
1.05V @ 5mA, 1A
Current - Collector Cutoff (Max) :
200nA
DC Current Gain (hFE) (Min) @ Ic, Vce :
20000 @ 100mA, 5V
Power - Max :
625mW
Frequency - Transition :
140MHz
Description

FMMT734TA NPN PNP Transistors Bipolar (BJT) Transistor PNP - Darlington 100V 800mA 140MHz 625mW Surface Mount SOT-23-3

Features


 BVCEO > -100V 

IC = -800mA High Continuous Collector Current 

Darlington Transistor hFE > 20k @ 100mA for High Gain 

High Gain Hold-Up to 5A 

625mW Power Dissipation 

Complementary Darlington NPN Type: FMMT634 

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) 

Halogen and Antimony Free. “Green” Device (Note 3) 

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data
 Case: SOT23 

Case Material: Molded Plastic, “Green” Molding Compound 

UL Flammability Classification Rating 94V-0 

Moisture Sensitivity: Level 1 per J-STD-020 

Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 

Weight 0.008 grams (Approximate)

Product Attributes Select All
Categories Discrete Semiconductor Products
　 Transistors - Bipolar (BJT) - Single
Manufacturer Diodes Incorporated
Series -
Packaging Tape & Reel (TR)
Part Status Active
Transistor Type PNP - Darlington
Current - Collector (Ic) (Max) 800mA
Voltage - Collector Emitter Breakdown (Max) 100V
Vce Saturation (Max) @ Ib, Ic 1.05V @ 5mA, 1A
Current - Collector Cutoff (Max) 200nA
DC Current Gain (hFE) (Min) @ Ic, Vce 20000 @ 100mA, 5V
Power - Max 625mW
Frequency - Transition 140MHz
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3
