LL4148 Small Signal Surface Mount Rectifier Diode SOD 80 With Lead Free Finish
LL4148 Small Signal Surface Mount Rectifier Diode SOD 80 With Lead Free Finish
LL4148 Small Signal Surface Mount Rectifier Diode SOD 80 With Lead Free Finish
LL4148 Small Signal Surface Mount Rectifier Diode SOD 80 With Lead Free Finish
LL4148 Small Signal Surface Mount Rectifier Diode SOD 80 With Lead Free Finish
LL4148 Small Signal Surface Mount Rectifier Diode SOD 80 With Lead Free Finish
Specifications
Brand Name :
ST
Model Number :
LL4148
Place of Origin :
CHINA
MOQ :
2500PCS
Price :
Negotiation
Payment Terms :
T/T, Western Union ， ESCROW
Supply Ability :
500000PCS
Delivery Time :
STOCK
Packaging Details :

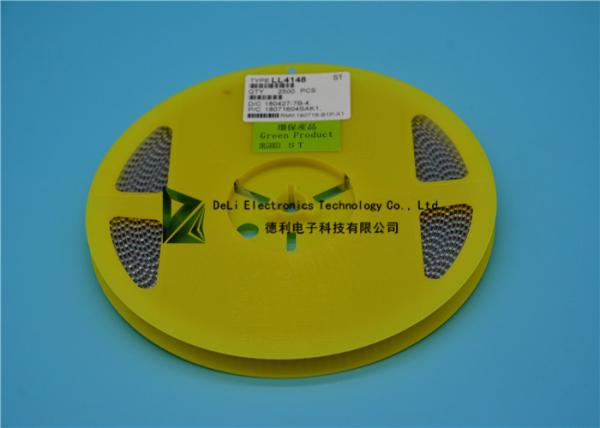

2500PCS/REEL
Categories :
Diodes - Rectifiers - Single
Voltage - DC Reverse (Vr) (Max) :
100V
Current - Average Rectified (Io) :
200mA
Voltage - Forward (Vf) (Max) @ If :
1V @ 10mA
Speed :
Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr :
25nA @ 20V
Reverse Recovery Time (trr) :
4ns
Capacitance @ Vr, F :
4pF @ 0V, 1MHz
Description

LL4148 General Purpose Rectifier Diode Diode Standard 100V 200mA Surface Mount SOD-80

Features and Benefits

• Fast Switching Speed

• Surface Mount Package Ideally Suited for Automatic Insertion

• General Purpose Rectification

• Silicon Epitaxial Planar Construction

• Lead Free Finish, RoHS Compliant (Note 1)


Mechanical Data

• Case: MiniMELF

• Case Material: Glass: UL Flammability Classification Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020

• Terminals: Finish - Sn97.5Ag2.5. Solderable per MIL-STD-202, Method 208

• Polarity: Cathode Band

• Marking: Cathode Band Only

• Weight: 0.05 grams (approximate)

Product Attributes Select All
Categories Discrete Semiconductor Products
　 Diodes - Rectifiers - Single
Manufacturer ON Semiconductor
Series -
Packaging Tape & Reel (TR)
Part Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1V @ 10mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 25nA @ 20V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case DO-213AC, MINI-MELF, SOD-80
Supplier Device Package SOD-80
Operating Temperature - Junction -55°C ~ 175°C
