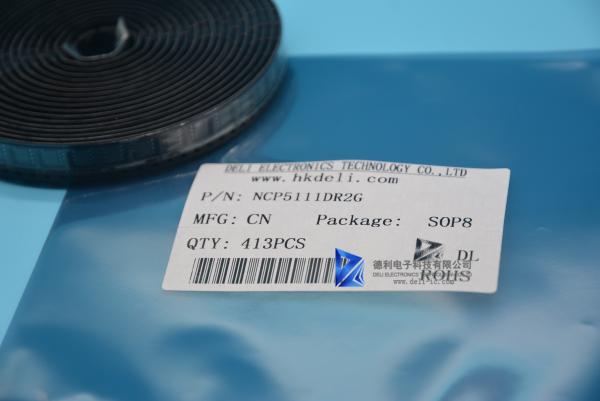

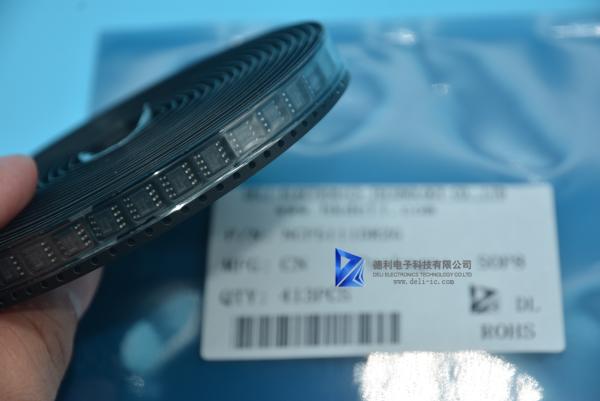

IGBTs SOP8 High Low Side Driver IC 600V NCP5111DR2G​
IGBTs SOP8 High Low Side Driver IC 600V NCP5111DR2G​
IGBTs SOP8 High Low Side Driver IC 600V NCP5111DR2G​
IGBTs SOP8 High Low Side Driver IC 600V NCP5111DR2G​
IGBTs SOP8 High Low Side Driver IC 600V NCP5111DR2G​
IGBTs SOP8 High Low Side Driver IC 600V NCP5111DR2G​
Specifications
Brand Name :
ON
Model Number :
NCP5111DR2G
Certification :
CE/ RoHS
Place of Origin :
USA
MOQ :
10pcs
Price :
To be negotiated
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
10,000PCS
Delivery Time :
in stock 2-3days
Packaging Details :
Reel
PN :
NCP5111DR2G
BRANDS :
ON
ORIGINAL :
USA
TYPE :
High Voltage High and Low Side Driver
PACKAGE :
SOP8
VOLTAGE :
up to 600 V
Description

NCP5111DR2G​ High Voltage High and Low Side Driver IC

The NCP5111 is a high voltage power gate driver providing two outputs for direct drive
of 2 N−channel power MOSFETs
or IGBTs arranged in a half−bridge configuration.
It uses the bootstrap technique to ensure a proper drive of the high−side power switch.
Features
•High Voltage Range: up to 600V
•dV/dt Immunity ±50 V/nsec
•Gate Drive Supply Range from 10 V to 20 V
•High and Low Drive Outputs
•Output Source / Sink Current Capability 250 mA / 500 mA
•3.3 V and 5 V Input Logic Compatible
•Up to VCC Swing on Input Pins
•Extended Allowable Negative Bridge Pin Voltage Swing to −10 V for Signal Propagation
•Matched Propagation Delays between Both Channels
•One Input with Internal Fixed Dead Time (650 ns)
•Under VCC LockOut (UVLO) for Both Channels
•Pin−to−Pin Compatible with Industry Standards
•These are Pb−Free Devices
Typical Applications
• Half−bridge Power Converters
IGBTs SOP8 High Low Side Driver IC 600V NCP5111DR2G​
IGBTs SOP8 High Low Side Driver IC 600V NCP5111DR2G​

Deli electronics tehcnology Co.,Ltd

mail:sales3@deli-ic.com
Skype:hkdeli881
Contact: VIVI-CHEN
