TOSHIBA TLP109 Photocoupler GaA Ired Photo IC SOP5
TOSHIBA TLP109 Photocoupler GaA Ired Photo IC SOP5
TOSHIBA TLP109 Photocoupler GaA Ired Photo IC SOP5
TOSHIBA TLP109 Photocoupler GaA Ired Photo IC SOP5
TOSHIBA TLP109 Photocoupler GaA Ired Photo IC SOP5
TOSHIBA TLP109 Photocoupler GaA Ired Photo IC SOP5
Specifications
Brand Name :
TOSHIBA
Model Number :
TLP109
Certification :
CE/ RoHS
Place of Origin :
JAPAN
MOQ :
10pcs
Price :
To be negotiated
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
10,000PCS
Delivery Time :
in stock 2-3days
Packaging Details :
Reel
PN :
TLP109
brand :
TOSHIBA
original :
JAPAN
Package :
SOP5
Operating temperature :
-55°C ~ 125°C
Voltage - output (Max) :
20V
Description
TOSHIBA surface - mount Photocoupler GaA As Ired & Photo−IC
Features:
Channel : 1
Voltage - Isolation 3750Vrms
Current transfer ratio (minimum) 20% @ 16mA
Current transfer ratio (maximum) -On/off time (typical value) 800ns, 800ns (maximum)
Rise/fall time (typical value) -Input type DC
Output type transistor
Voltage - output (Max) 20V
Current - output/channel 8mA
Voltage - forward (Vf) (typical value) 1.64V
Current - DC forward (If) (maximum) 20mA
Vce saturation pressure drop (maximum) -
Operating temperature -55°C ~ 125°C
Mounting type Surface mount type
Package/housing 6-SOIC (0.179", 4.55mm wide), 5 leads

Supplier device package 6-SO, 5 lead

Uses:
Digital Logic Isolation
Line Receivers
Power Supply Feedback Control
Switching Power Supplies
Transistor Inverters
Details:
The Toshiba TLP109 mini-flat coupler is a small-outline coupler suitable for surface-mount assembly.
The TLP109 consists of a high-output-power GaAℓAs light emitting diode
optically coupled to a high-speed photodiode-transistor chip.
The TLP109 is housed in the 6-pin SO package and guarantees a creepage distance of ≥ 5.0 mm,
a clearance of ≥ 5.0 mm and an insulation
thickness of ≥ 0.4 mm. Therefore, the TLP109 meets the reinforced
insulation class requirements of international safety standards.
• Isolation voltage: 3750 Vrms (min)
• Switching speed: tpHL = 0.8 μs, tpLH = 0.8 μs (max)
(@RL = 1.9 kΩ)
• TTL-compatible
• UL recognized :UL1577, File No.E67349
• c-UL recognized :CSA Component Acceptance Service No. 5A, File No.E67349
• VDE under application : DIN EN60747-5-2
Construction Mechanical Ratings
Creepage distance: 5.0 mm (min)
Clearance: 5.0 mm (min)
Insulation thickness: 0.4 mm (min)

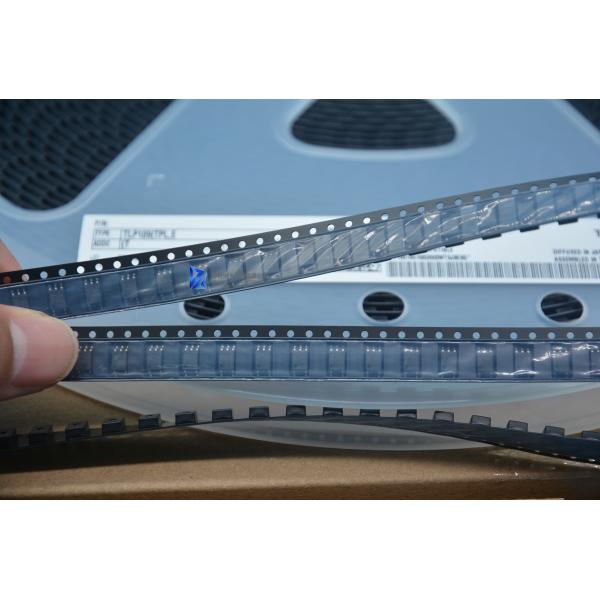

TOSHIBA TLP109 Photocoupler GaA Ired Photo IC SOP5
