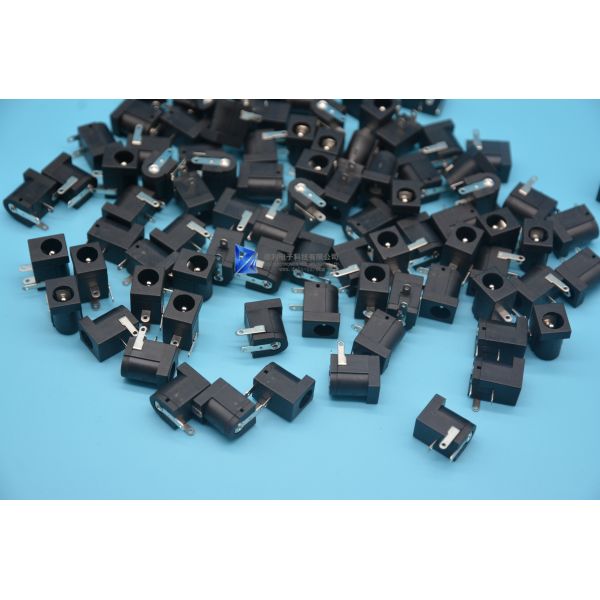

DC-005 PCB Mount 5.5 x 2.0mm Female DC Power Jack Plug Socket Connector DC005 Black 5V 0.5A wave soldering

Supply Barrel-Type Right Angle PCB Mount Terminal

Features:

1. 5.5x2.0mm DC Power Plug Jack

2. Panel mounting

3. Works with the male plug with inner diameter: 2.1mm, outer diameter: 5.5mm

More information :

1.SC0PE: This specification covers the requirements for:“ Treo jack”(“ Stereo dack 3 Series )
2. Rating: DC5V 0.5A
3. Construction :
3. 1. Shape and dimensions are subject to drawing
3. 2. All part not allowed to exist rust, crack and poor planting.
4. Standard test conditions shall be 5 to 35 in termperature and 45 T0 85% in humidity.
5. Operating teperature range -20 to+ 0℃.
6. Electrical performance
6.1. Contact resistance
Being measured at 1 KHz small current contact resistance meter. Performance 50m ohm 22max. E1kz

6.2. Insulation resistance
Measurements shall be made following app lication of DC 500 V potential across terminals and across termnaIs and frame for 1 minute: Performance 100 m ohm
6.3 Withstand voltage
AC 500 V(5CHz or 60 Hz)shall be app lied across terminals and acoss temi nat s and frame for onenue.

7. There shall be no breakdow.

8.2. Resistance to soldering heat test
Solder bath method: solder temperatute 260+5'C

Immersion Thickness of PCB 1. 6m

Soldering iron method: Bit temperature 350-10C

Appication time 3+/-0. 5 sec

However exces sive pressure shalI not be applied to the terminal.

Without deformation of case or excessive looseness of teminals electrical characteristics shall be satisfied.

8.3 Life test

5000 cycles of operation at a rate of 15-18 cycles per minute with unloading
(1) Contact resistance150 m ohm max.
(2) Operating force 30% initial value

8.4. Heat test
80+/-2 C for 96 hours, test after keep ing in normal condition for 30 minutes
(1) Contact resistance150m ohm max.
(2) Insulation resistance
(3) There shall be no sign of damage mechaniclly and electrically.

8.5. Humidity test
40+/-2 degree 90-95% RH for 96 hours, test after keeping in normal condi tion for 30 mins
(1) Contact resistance 150 ms max
(2) Insulation resistance min. 50ohm.
(3)There shall be no sign of damage mechanically and electrically

8.6. Cold test
At-20+/-3C degree for 96 hours, test after keeping in normal condition for 30 mins
(1) Contact resistance150 m max.
(2) here shall be no sign of damage mechanicl and electrically

8.7. Temperature cycling test

In FIG for 5 cycles, test after keeping in normal condition for 30 min
