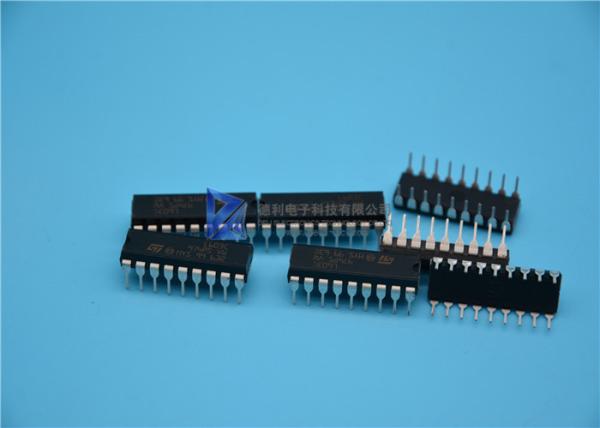

L603C ST Original Darlington Arrays IC DIP - 18 DC90V
L603C ST Original Darlington Arrays IC DIP - 18 DC90V
L603C ST Original Darlington Arrays IC DIP - 18 DC90V
L603C ST Original Darlington Arrays IC DIP - 18 DC90V
L603C ST Original Darlington Arrays IC DIP - 18 DC90V
L603C ST Original Darlington Arrays IC DIP - 18 DC90V
Specifications
Brand Name :
ST
Model Number :
L603C
Certification :
CE/ RoHS
Place of Origin :
USA
MOQ :
10pcs
Price :
To be negotiated
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
10,000PCS
Delivery Time :
in stock 2-3days
Packaging Details :
Tube
PN :
L603C
Brands :
ST
Original :
USA
Package :
DIP-18
Type :
Darlington Arrays IC
Output Voltage :
90 V (vce (sus)) = 70 V)
Description

L603C ST Original Darlington Arrays IC DIP-18 Original high permance

■ Eight Darlingtons Per Package
■ Output Current 400 Ma Per Driver (500ma Peak)
■ Output Voltage 90 V (vce (sus)) = 70 V)
■ Integral Suppression Diodes For Inductive Loads
■ Outputs Can Be Paralleled For Higher Current
■ Ttl / Cmos Inputs
■ Inputs Pinned Opposite Outputs To Simplify Layout

DESCRIPTION
The L603 and L604 are high voltage, high current
darlington arrays each containing eight open collector darlington pairs with common emitters. Each
channel is rated at 400mA and can with stand peak currents of 500 mA.
Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout.
The four versions interface to all common logic families:
L603 = 5V TTL
L604 = 6 - 15V CMOS
These versatile devices are useful for driving a wide range of loads, including solenoids, relays DC motors,
LED displays, filament lamps, thermal printheads and high power buffers.
L603C ST Original Darlington Arrays IC DIP - 18 DC90V
L603C ST Original Darlington Arrays IC DIP - 18 DC90V
Deli electronics tehcnology Co.,Ltd
Email:sales3@deli-ic.com
Skype:hkdeli881
Contact: VIVI-CHEN
