SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A
SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A
SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A
SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A
SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A
SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A
SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A
SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A
SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A
SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A
Specifications
Brand Name :
Littel fuse
Model Number :
SMBJ400A
Certification :
CE/ RoHS
Place of Origin :
USA
MOQ :
10pcs
Price :
To be negotiated
Payment Terms :
T/T, Western Union ,paypal
Supply Ability :
10,000PCS
Delivery Time :
in stock 2-3days
Packaging Details :
Reel
PN :
SMBJ400A
Brands :
Littel fuse
Original :
USA
Mounting way :
Surface Mount
Type :
Transient Voltage Suppressor TVS Diode
Package :
DO-224A
Description

SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode

Transient Voltage Suppression

FEATURES

• For surface mounted applications in order to
optimize board space
• Low profile package
• Built-in strain relief
• Glass passivated junction
• Low inductance
• Excellent clamping capability
• Repetition rate (duty cycle):0.01%
• Fast response time: typically less than
1.0 ps from 0 volts to BV for unidirectional types
• Typical IR less than 1µA above 10V
• High temperature soldering:
250°C/10 seconds at terminals
• Plastic package has Underwriters Laboratory
Flammability Classification 94 V-O

MECHANICAL DATA
Case: JEDEC DO214AA. Molded plastic over glass
passivated junction
Terminals: Solder plated, solderable per
MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode)
except Bidirectional

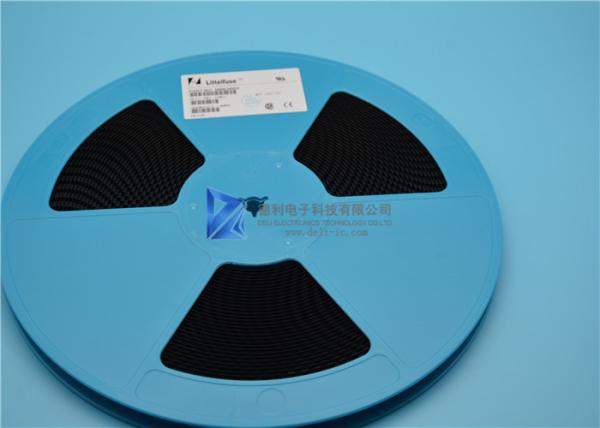

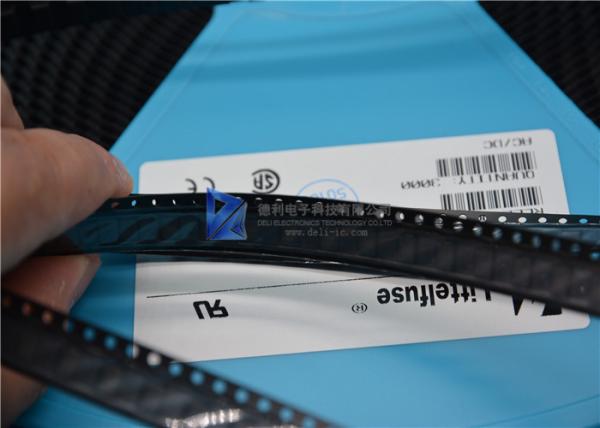

Standard Packaging: 12mm tape (EIA STD RS-481)
Weight: 0.003 ounces, 0.093 grams)
DEVICES FOR BIPOLAR APPLICATIONS
Electrical characteristics apply in both directions.
MAXIMUM RATINGS AND CHARACTERISTICS
Dimensions in inches (millimeters)
For Bidirectional use C or CA Suffix for types SMBJ5.0 thru types SMBJ440 (e.g. SMBJ5.0C, SMBJ440CA)
Ratings at 25°C ambient temperature unless otherwise specified
MAXIMUM RATINGS AND CHARACTERISTICS, more details Pls contact us for datasheet.
SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A

SMBJ400A Surface Mount Transient Voltage Suppressor TVS Diode DO-224A
