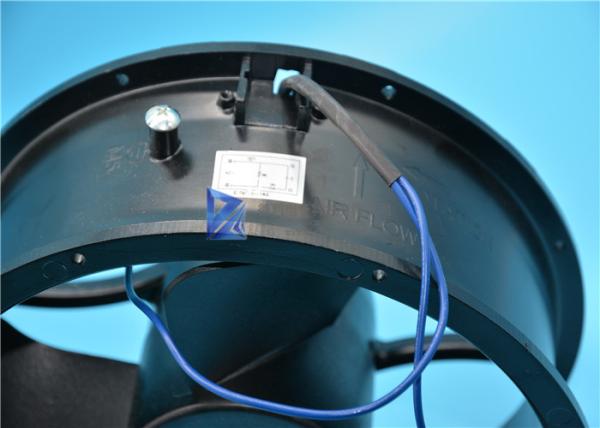

OA254AN-11-1TB Electronic Integrated Components FAN 254X89MM 115VAC TERM Bearing Type Ball

Part Number: OA254AN-11-1TB
Description: 254X89MM 115VAC TERM
Series: OA254AN

Part Status: Active

Voltage - Rated: 115VAC

Size / Dimension: Round - 254mm Dia

Width: 89.00mm

Bearing Type: Ball

Fan Type: Tubeaxial

Noise: 65.0 dB

Power (Watts): 70.0W

RPM: 2200 RPM

Termination: Active

Operating Temperature: -4 ~ 176～F (-20 ~ 80～C)

Weight: standard

R2Dxxx, R2Exxx and R2Sxxx Series

AC Backward Curved Motorized Impellers

Most electronics systems create heat which needs to be removed.

Impellers are the cooling types with higher efficiencies and one of the quietest performance of all types.

OAB908 Series

AC Side Inlet Blower, Ball Bearing, Dual Speed, 120V - 220V

Exceptional cooling performance, radiating blower with one directional exhaust.

Low noise via highly efficient fan blade design.

Low power consumption and high motor efficiency through radial gap type motor design.

AC and DC Axial Fans

Providing an overview of the main considerations when selecting a fan and discuss each consideration individually.

There will be reviews of the types of bearings and the types of AC and DC fan motors, i

ncluding a discussion of the different forms of motor protection.

The part number structure will be examined and examples of both AC and DC fan products available from .

4715MS, 4715FS, 4715TS, 4715HS Series

AC Axial Fans, 100V - 230V

AC axial fans can be an integral part of a cooling solution for your heat generating applications.

AC axial fans are common types of fans used in electronic components.

The axial flow fan uses a propeller to create a large airflow in the direction of the axis, moving air in a parallel direction of the blade axis. In other words, the fan blows air across the axis of the blade, hence the name axial fans.

The fan moves heated air away from the components and draw cooler air over them,

thereby giving a superior life expectancy to the components.
