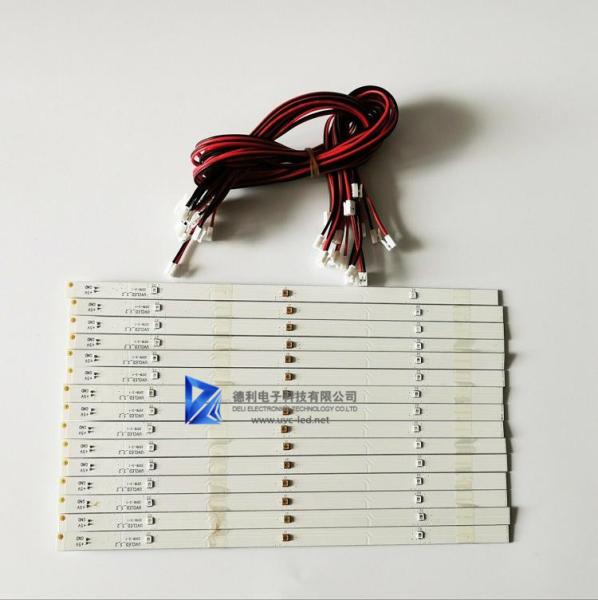

275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip
275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip
275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip
275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip
275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip
275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip
275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip
275nm UVC LED Lamp Bacteria Disinfection Sterilizer DC5V 5mW Ultra Violet Light Strip
Specifications
Brand Name :
DELI
Model Number :
DLBD-UVC275-5
Place of Origin :
CN
MOQ :
1
Price :
negotiaon
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
10000
Delivery Time :
3-5days
Packaging Details :
normal safe packaged
Power :
2-5mW
Voltage :
DC5V
Wavelength :
275nm
Base Type :
Mini jst socket
Weight: :
25g
Lifespan: :
>10,000H
UVC LED: :
1 uvc led
Size: :
25*1*0.2cm
Description

5mW DUV UVC Light Fixtures DC 5V Ultra Violet Light Strip 275nm Bacteria Sterilizer

Application: Medical sterilization / home disinfection / outdoor disinfection,

Industrial disinfection

Features:

1. High performance: Kill 99.99% of harmful bacteria with UV light in seconds.

2. DIY Water Sanitizer solution: Clean water by installing a UVC LED module.

3. Environmental friendly: Chemical-free ultroviolet lighting source.

4. Long serving life: Nearly 10000 hours of working life.

5. Instant start.
Parameters:
Power: 5mW
Voltage: DC5V
Weight: 25g
Size: 25*1*0.2cm

Part one:

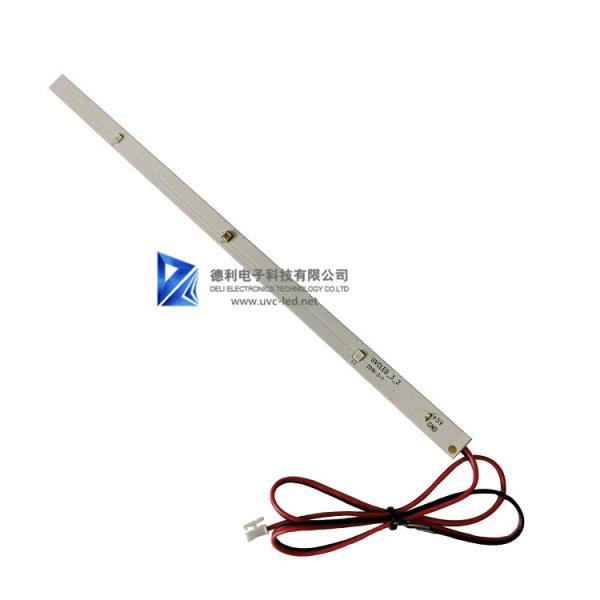

PCB Board Size Map(mm)

Material of the PCB board is double-sided glass fiber.

The outline dimension is 250mm*10mm, the depth of the PCB board is 1.6mm,

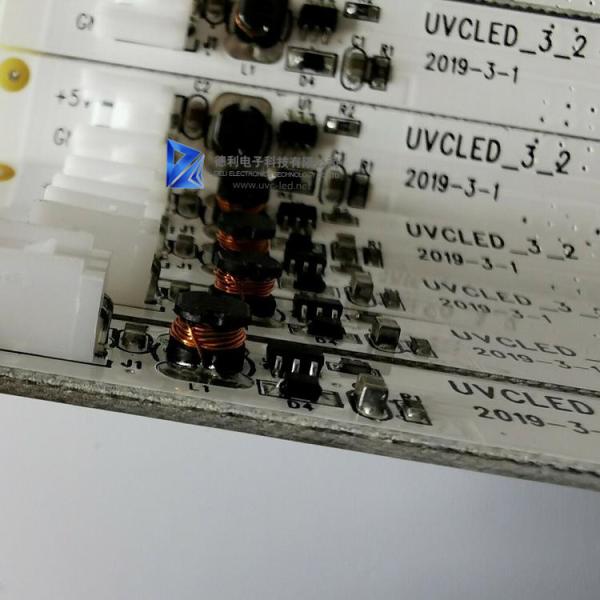

IC and Resistor on the back (depth:2mm) and UVC LED (1.6mm) on the front.

The overall depth is around 4.3mm.

Part two:

Technical Requirement

It has violet LEDs and 1 UVC LEDs on the PCB board.

A. Table of the parameters of the 2 blue LEDs

Item Symbol Condition Min. Ave. Max. Unit
Forward Voltage VF IF=30mA 3.2 3.6 V
Reverse Current IR VR=5V -- 10 μA
Light Angle 2θ½ IF=30mA -- 120 -- deg
Luminous Flux φV IF=30mA 40 80 mw
Working Current IF -- -- 30 -- mA
Peak Wavelength λP IF=30mA 395 -- 400 nm
Junction Temperature Tj IF=30mA -- 125 -- ℃
Thermal Resistance RJP IF=30mA -- 8 -- ℃/W


B. Table of the parameters of 1 UVC LED

Item Symbol Condition Min. Ave. Max. Unit
Forward Voltage VF IF=40mA 5 6.5 8 V
Light Angle 2θ½ IF=40mA -- 120 -- deg
P-out P IF=40mA 2 3.5 5 mW
Half-Wave Width Δλ IF=40mA 8 10 12 nm
Peak Wavelength λP IF=40mA 270 275 285 nm
ESD H.B.M -- 4000 - - V


Part three: Description of Wire

Length: 500mm; 24AWG; Red: Anode; Black: Cathode;

Terminal: 2 pin mini jst socket

Part four: Power Supply DC5V
