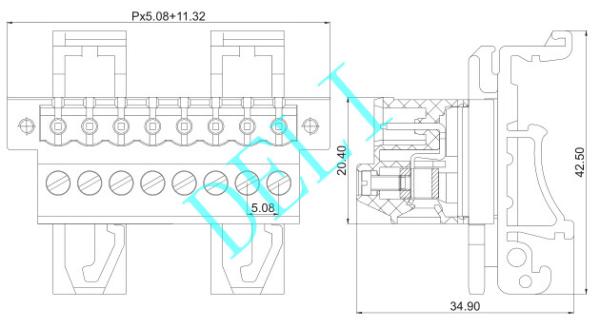

2P-24P Poles Terminal Block Connector Feed - Through Header DL2EDG-UVKM-XX-5.08
2P-24P Poles Terminal Block Connector Feed - Through Header DL2EDG-UVKM-XX-5.08
Specifications
Brand Name :
DELI
Model Number :
DL2EDG-UVKM-XX-5.08
Place of Origin :
CN
MOQ :
100
Supply Ability :
10000
Delivery Time :
2DAYS
Packaging Details :
BAG
Pitch :
5.08MM
Poles :
2P-24P
Screw :
M2.5、Steel、Zinc plated
Rated voltage :
IEC:250V UL:300V
Rated current :
IEC:15A UL:10A
Wire range :
24-12AWG
Description
MATERIAL
Pitch:5.08MM
Poles: 2P-24P
Screw:M2.5, Steel, Zinc plated
Wire cage:Brass, Ni plated
Contact: Brass, Tin plated
Housing:PA66. UL94V-0
ELECTRICAL
Rated voltage:IEC:250V UL:300V
Rated current: IEC:15A UL:10A
Withstanding voltage:AC2500V/1Min
Wire range:24-12AWG
MECHANICAL
Temperature range:-40℃-- +105℃
MAX soldering:+250℃ for 5 sec
Torque:0.4Nm(3.5 lb.in)
Strip length:7-8mm
2P-24P Poles Terminal Block Connector Feed - Through Header DL2EDG-UVKM-XX-5.08
DeLi Electronics Technology Co., Ltd
PART# : DL2EDG-UVKM-XX-5.08
