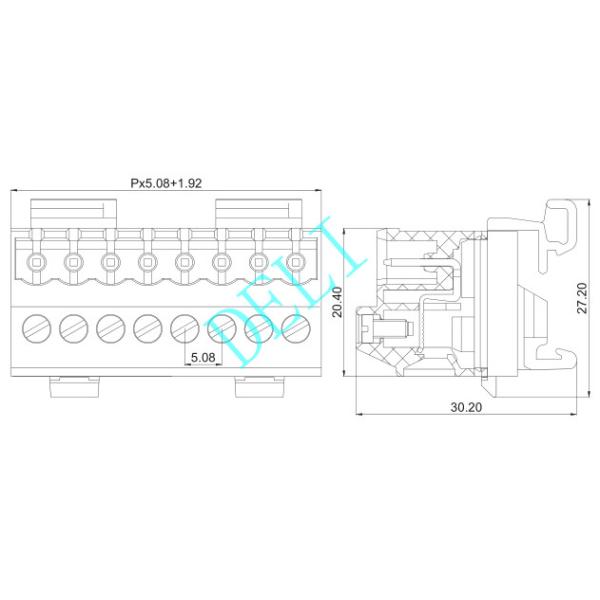

Duarble PCB Connector Brass / Tin Plated Contact DL2EDG-VK-XX-5.08 7-8mm Strip Length
Duarble PCB Connector Brass / Tin Plated Contact DL2EDG-VK-XX-5.08 7-8mm Strip Length
Duarble PCB Connector Brass / Tin Plated Contact DL2EDG-VK-XX-5.08 7-8mm Strip Length
Duarble PCB Connector Brass / Tin Plated Contact DL2EDG-VK-XX-5.08 7-8mm Strip Length
Specifications
Brand Name :
DELI
Model Number :
DL2EDG-VK-XX-5.08
Place of Origin :
CN
MOQ :
100
Supply Ability :
10000
Delivery Time :
2DAYS
Packaging Details :
BAG
Payment Terms :
T/T, Western Union
Pitch :
5.08MM
Poles :
2P-24P
Screw :
M2.5、Steel、Zinc plated
Rated voltage :
IEC:250V UL:300V
Rated current :
IEC:15A UL:10A
Wire range :
24-12AWG
Description
MATERIAL
Pitch:5.08MM
Poles: 2P-24P
Screw:M2.5,Steel, Zinc plated
Wire cage: Brass,Ni plated
Contact:Brass,Tin plated
Housing:PA66. UL94V-0
ELECTRICAL
Rated voltage:IEC:250V UL:300V
Rated current: IEC:15A UL:10A
Withstanding voltage:AC2500V/1Min
Wire range:24-12AWG
MECHANICAL
Temperature range:-40℃-- +105℃
MAX soldering:+250℃ for 5 sec
Torque:0.4Nm(3.5 lb.in)
Strip length:7-8mm
Duarble PCB Connector Brass / Tin Plated Contact DL2EDG-VK-XX-5.08 7-8mm Strip Length
DeLi Electronics Technology Co., Ltd
PART# : DL2EDG-VK-XX-5.08
Deli electronics tehcnology co ltd
www.icmemorychip.com
Email:sales@deli-ic.com
Skype:hksunny3
TEL:86-755-82539981
