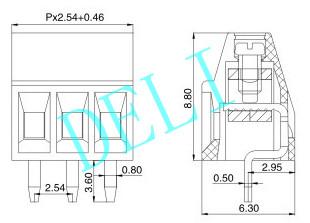

2.54mm Pitch Spring Pluggable Terminal Block DL128--XX-2.54mm 24-12AWG Wire Range
2.54mm Pitch Spring Pluggable Terminal Block DL128--XX-2.54mm 24-12AWG Wire Range
2.54mm Pitch Spring Pluggable Terminal Block DL128--XX-2.54mm 24-12AWG Wire Range
2.54mm Pitch Spring Pluggable Terminal Block DL128--XX-2.54mm 24-12AWG Wire Range
Specifications
Brand Name :
DELI
Model Number :
DL128--XX-2.54
Place of Origin :
CN
MOQ :
100
Payment Terms :
Western Union
Supply Ability :
10000
Delivery Time :
2DAYS
Packaging Details :
BAG
Pitch :
2.54MM
Poles :
2P-30P
Screw :
M1.6、Steel、Zinc plated
Housing :
PA66. UL94V-0
Rated voltage :
130V/150V
Rated current :
8A/6A
Wire range :
24-12AWG
Description
MATERIAL
Pitch:2.54MM
Poles: 2P-30P
Screw:M1.6, Steel,Zinc plated
Wire cage:Brass, Ni plated
Pin header: Brass,Tin plated
Housing:PA66. UL94V-0
ELECTRICAL
Rated voltage:130V/150V
Rated current:8A/6A
Withstanding voltage:AC1250V/1Min
Wire range:24-12AWG
MECHANICAL
Temperature range:-40℃-- +105℃
MAX soldering:+250℃ for 5 sec
Torque:0.1Nm(0.88 lb.in)
Strip length:5-6mm
2.54mm Pitch Spring Pluggable Terminal Block DL128--XX-2.54mm 24-12AWG Wire Range
DeLi Electronics Technology Co., Ltd
PART# : DL128--XX-2.54
