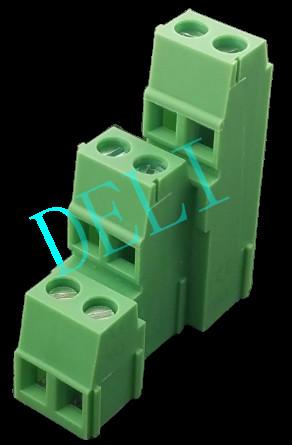

DL128A3-XX-5.0/5.08mm PCB Connector 2 Pole Pcb Panel Mount Terminal Block 300V/20A
DL128A3-XX-5.0/5.08mm PCB Connector 2 Pole Pcb Panel Mount Terminal Block 300V/20A
DL128A3-XX-5.0/5.08mm PCB Connector 2 Pole Pcb Panel Mount Terminal Block 300V/20A
DL128A3-XX-5.0/5.08mm PCB Connector 2 Pole Pcb Panel Mount Terminal Block 300V/20A
Specifications
Brand Name :
DELI
Model Number :
DL128A3-XX-5.0/5.08
Place of Origin :
CN
MOQ :
100
Payment Terms :
T/T, Western Union
Supply Ability :
10000
Delivery Time :
2DAYS
Packaging Details :
BAG
Pitch :
5.0/5.08MM
Poles :
2P、3P
Screw :
M2.5、Steel、Zinc plated
Housing :
PA66. UL94V-0
Rated voltage :
300V
Rated current :
10A
Withstanding voltage :
AC2000V/1Min
Wire range :
24-12AWG
Description
MATERIAL
Pitch:5.0/5.08MM
Poles: 2P,3P
Screw:M2.5, Steel, Zinc plated
Wire cage:Steel,Zinc plated,Brass,Ni plated
Pin header:Brass, Tin plated
Housing:PA66. UL94V-0
ELECTRICAL
Rated voltage:300V
Rated current:10A
Withstanding voltage:AC2000V/1Min
Wire range:24-12AWG
MECHANICAL
Temperature range:-40℃-- +105℃
MAX soldering:+250℃ for 5 sec
Torque:0.4Nm(3.5 lb.in)
Strip length:6-7mm
DL128A3-XX-5.0/5.08mm PCB Connector 2 Pole Pcb Panel Mount Terminal Block 300V/20A
DeLi Electronics Technology Co., Ltd
PART# : DL128A3-XX-5.0/5.08
