2 Pins Screw Terminal Block PCB Connector 300v DL127-XX-5.0/5.08mm Long Lifespan
2 Pins Screw Terminal Block PCB Connector 300v DL127-XX-5.0/5.08mm Long Lifespan
2 Pins Screw Terminal Block PCB Connector 300v DL127-XX-5.0/5.08mm Long Lifespan
2 Pins Screw Terminal Block PCB Connector 300v DL127-XX-5.0/5.08mm Long Lifespan
Specifications
Brand Name :
DELI
Model Number :
DL127-XX-5.0/5.08
Place of Origin :
CN
MOQ :
100
Supply Ability :
10000
Delivery Time :
2DAYS
Packaging Details :
BAG
Pitch :
5.0/5.08 MM
Poles :
2P、3P
Screw :
M2.5、Steel、Zinc plated
Wire cage :
Steel、Zinc plated、Brass、Ni plated
Rated voltage :
250V/300V
Rated current :
15A/10A
Withstanding voltage :
AC2000V/1Min
Wire range :
26-16AWG
Description
MATERIAL

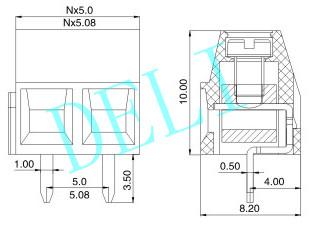

Pitch:5.0/5.08 MM
Poles: 2P,3P
Screw:M2.5, Steel, Zinc plated
Wire cage:Steel, Zinc plated, Brass,Ni plated
Pin header: Brass, Tin plated
Housing:PA66. UL94V-0
ELECTRICAL
Rated voltage:250V/300V
Rated current:15A/10A
Withstanding voltage:AC2000V/1Min
Wire range:26-16AWG
MECHANICAL
Temperature range:-40℃-- +105℃
MAX soldering:+250℃ for 5 sec
Torque:0.4Nm(3.5 lb.in)
Strip length:4-5mm
2 Pins Screw Terminal Block PCB Connector 300v DL127-XX-5.0/5.08mm Long Lifespan
DeLi Electronics Technology Co., Ltd
PART# : DL127-XX-5.0/5.08
