AD9744ARUZN 14 Bit Digital To Analog Converter IC 1 28-TSSOP
AD9744ARUZN 14 Bit Digital To Analog Converter IC 1 28-TSSOP
Specifications
Brand Name :
Analog Devices
Model Number :
AD9744ARUZN
MOQ :
50pcs
Price :
Negotiable
Supply Ability :
1000000pcs
Series :
AD9209
Resolution :
12 bit
Number of Channels :
4 Channel
Minimum Operating Temperature :
- 40 C
Maximum Operating Temperature :
+ 105 C
Packaging :
Tube
Brand :
Analog Devices
Product Type :
DACs - Digital to Analog Converters
Factory Pack Quantity :
50
Subcategory :
Data Converter ICs
Description

AD9744ARUZN 14 Bit Digital to Analog Converter 1 28-TSSOP

Analog Devices Inc. AD9744 TxDAC® D/A Converters

Analog Devices Inc. AD9744 TxDAC® D/A Converters are 14-bit resolution, wideband, third-generation members of the TxDAC series. This series is high-performance, low-power CMOS digital-to-analog converters (DACs). The TxDAC family, consisting of pin-compatible 8-, 10-, 12-, and 14-bit DACs, is specifically optimized for the transmit signal path of communication systems.

FEATURES

  • High-performance member of pin-compatible TxDAC product family
  • Excellent spurious-free dynamic range performance
  • SFDR to Nyquist
  • 83dBc at 5MHz output
  • 80dBc at 10MHz output
  • 73dBc at 20MHz output
  • SNR at 5MHz output, 125 MSPS: 77dB
  • Twos complement or straight binary data format
  • Differential current outputs: 2mA to 20mA
  • Power dissipation: 135mW at 3.3V
  • Power-down mode: 15mW at 3.3V
  • On-chip 1.2V reference
  • CMOS-compatible digital interface
  • 28-lead SOIC, 28-lead TSSOP, and 32-lead LFCSP packages
  • Edge-triggered latches

APPLICATIONS

  • Wideband communication transmit channel
  • Direct IFs
  • Base stations
  • Wireless local loops
  • Digital radio links
  • Direct digital synthesis (DDS)
  • Instrumentation

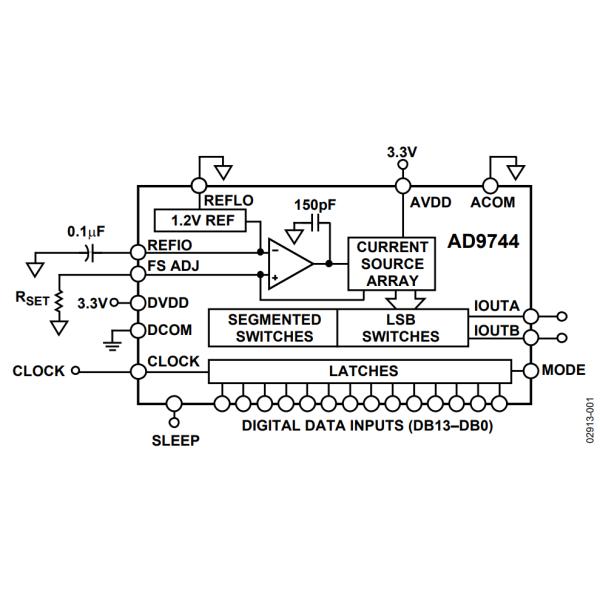

FUNCTIONAL BLOCK DIAGRAM

AD9744ARUZN 14 Bit Digital To Analog Converter IC 1 28-TSSOP
