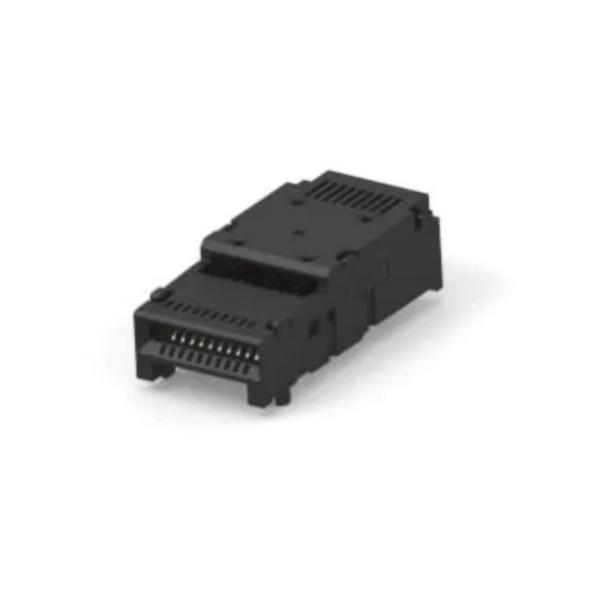

2325864-1 40 Position Surface Mount Connector , SFP DD Double Density Connector
2325864-1 40 Position Surface Mount Connector , SFP DD Double Density Connector
Specifications
Brand Name :
TE Connectivity
Model Number :
2325864-1
MOQ :
50pcs
Price :
Negotiable
Supply Ability :
1000000pcs
Product Status :
Active
Connector Style :
Receptacle
Connector Type :
SFP-DD (Double Density)
Number of Positions :
40
Mounting Type :
Surface Mount, Right Angle
Termination :
Solder
Description

2325864-1 40 Position SFP-DD (Double Density) Receptacle Connector Solder Surface Mount, Right Angle

TE Connectivity SFP-DD Cages & Connectors

TE Connectivity’s (TE) SFP-DD Cages and Connectors offer high-speed data transmission and better thermal management to address the demand for port density and scalability in next-generation applications. These small form-factor pluggable double-density (SFP-DD) products are developed per SFP-DD multi-source agreement (MSA) specifications. They are designed for both 28GHz NRZ and 56GHz PAM-4 protocols. The SFP-DD series offers two rows of electrical pins that can enable two-channel data transmission, instead of the traditional one-channel in an SFP architecture. The components are backwards compatible for easy integration and mechanically interoperable with module components from different manufacturers. They can free up more space in applications compared to QSFP28/QSFP56. TE SFP-DD Cages and Connectors are ideal for use in switches, servers, routers, storage equipment, base stations, and anywhere high-speed input / output data transmission is required.

FEATURES

  • 2-lane interconnect with higher density and better signal integrity than SFP28/56
  • Backwards compatible for easy integration
  • Space savings
  • Offers superior thermal management with TE’s innovative thermal bridge technology
  • Design flexibility
  • Developed in accordance with SFP-DD MSA specifications

APPLICATIONS

  • Switches
  • Servers
  • Routers
  • Storage equipment
  • Base stations
  • Anywhere high-speed input / output data transmission is required

SPECIFICATIONS

  • 28GHz NRZ, 56GHz PAM4 operating frequency
  • 100Ω nominal impedance
  • -55°C to +85°C temperature range
  • SI performance
    • 28GHz: follows IEEE802.3 bj
    • 56GHz: follows IEEE802.3 cd
